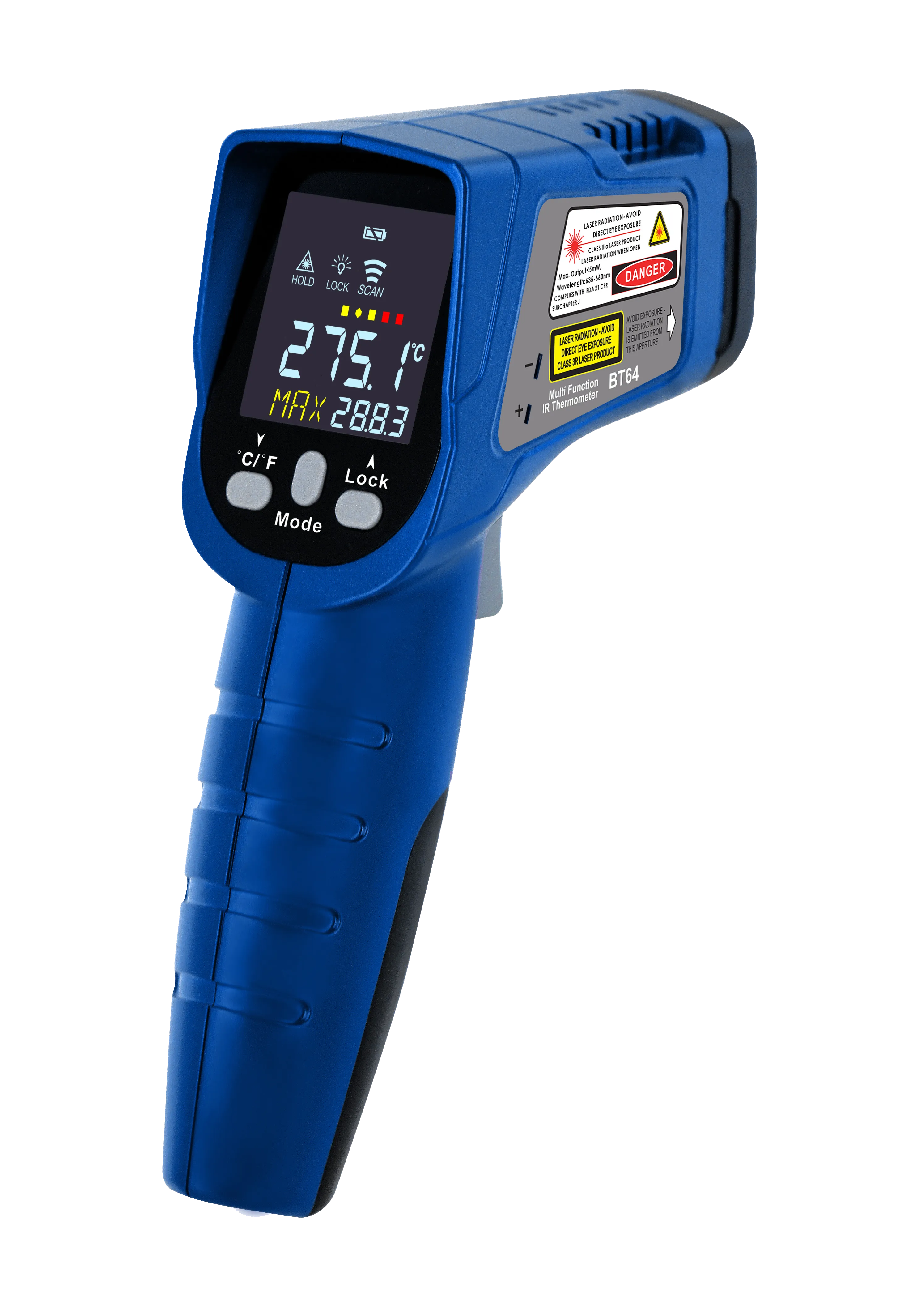

The BT-64 is the top field IR thermometer combining -60 to +1000°C measurement (D:S 30:1) with K-type thermocouple socket, Thermal Bridge Detection (THB), Dew Point Temperature (DPT) and humidity sensor. Runs 8 days on 2×AAA batteries.
Measurement
Type
IR + Laser + TC Socket + Colour Bar + THB + DPT + RH
IR Range
-60 ~ +1000°C (-76 ~ +1832°F)
TC Range (probe)
-64 ~ +1400°C
Accuracy (Tobj 15~35°C)
±1.0°C
Accuracy (0~1000°C)
±2% or ±2°C (whichever greater)
Accuracy (-60~0°C)
±(2.5°C + 0.05/°C)
Emissivity
0.95 default, adjustable 0.1-1.0 (step 0.01)
Resolution
0.1°C (-999.9~+999.9) / 1°C otherwise
D:S Ratio
30:1 (90% energy)
Internal Memory
50 sets (temp + emissivity)
Humidity
Relative Humidity
1~99%; ±3% (20~80%), ±5% otherwise
Dry Bulb Temperature
-20 ~ +65°C; ±2.5°C
Wet Bulb Temperature
-20 ~ +65°C; ±2.5°C
Dew Point Temperature
-50 ~ +50°C; ±2.5°C (20~30%RH)
Power
Battery Life (laser+backlight)
Typical 8 hrs / minimum 7 hrs
Battery Life (backlight only)
Typical 32 hrs / minimum 30 hrs
Physical
Dimensions
53 x 124 x 171 mm
Weight
~240 g (with batteries)
Certifications
