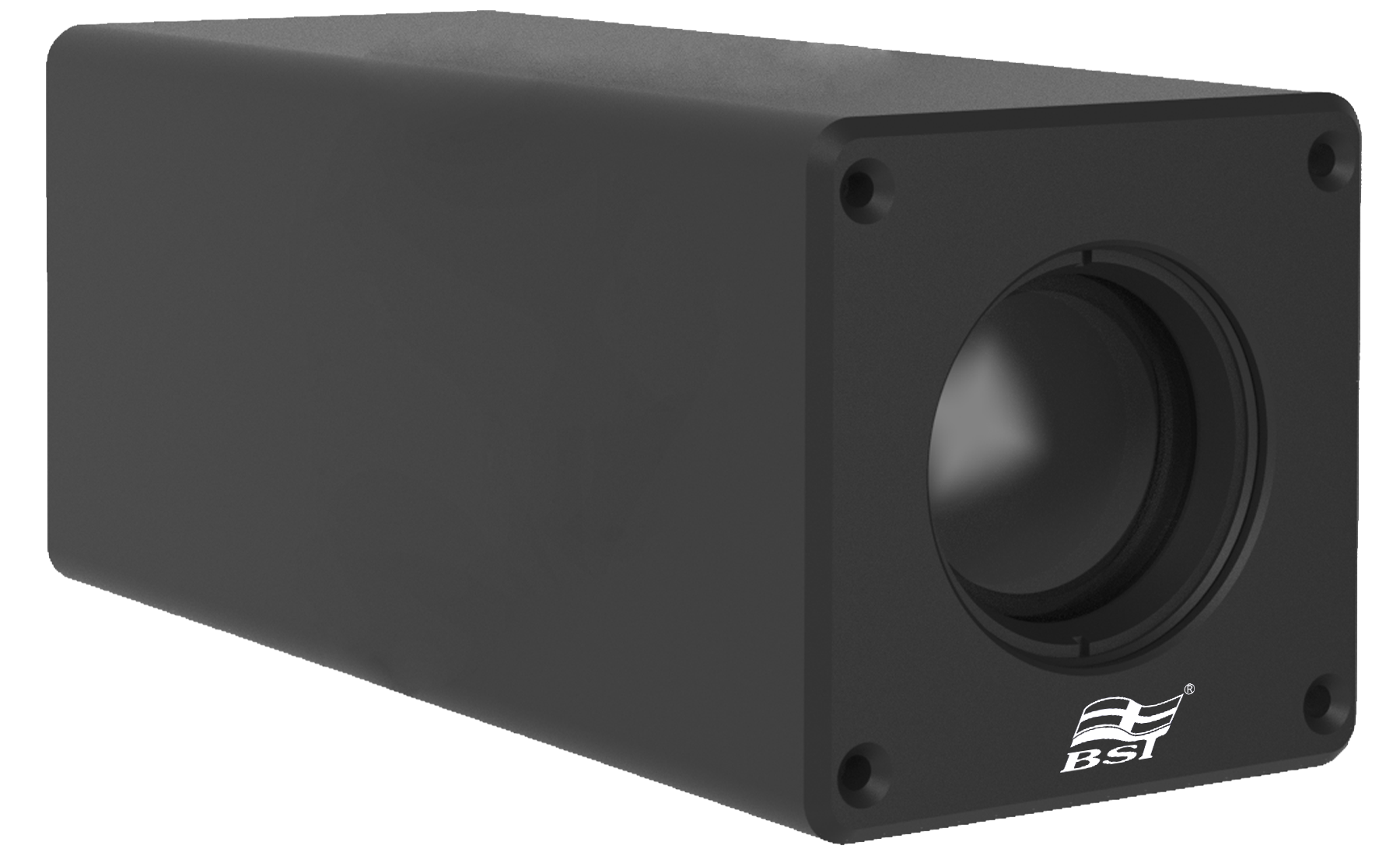

BC-10 UV camera uses 240-280nm out-of-band rejection UV imaging technology, which can filter out the interference of the sunlight. Its SDK provides developing options for corona inspection systems such as onsite (OS), drone (DR), or robot (ROB) systems.
BC-10 can "see" the corona discharge, invisible to human eyes since it is weak radiation emitted by electric facilities. BC-10 provides output, including video stream and photon counting for quantitative analysis. The photon number indicates the corona intensity. BC-10 camera comprises a high-performance detector, UV enhanced components, UV optical components, and signal processing units, which can also be customised for different applications according to your existing system configurations.
BC-10 camera has advantages of high detection sensitivity, excellent anti-interference ability, low power consumption, robust scalability, etc. This daytime UV module can apply to high voltage electrical equipment such as substations, transmission and distribution lines, railway lines, generators, transformers, mines, petroleum, heavy industry, fire prevention and inspection services.
Overview
- Daytime filter, not affected by sunshine
- Power, serial and video all-in-one plug-in port
- Low power consumption, Light Weight
- Counting of UV photons of the corona, Adjustable of UV gains
- Output video with no delay or trailing
- SDK provided, RS232 communication
- Wide working temperature from -25oC to 55oC
- Enclosed design for a harsh environment
FEATURES
High Sensitivity Detector
A high-performance ultraviolet detector is used, which is very suitable for detecting the weak ultraviolet rays generated by the corona.
Out-of-band Rejection Filter
A high-performance filter has the characteristic of deep cut-off 240 to 280nm waveband and high transparency. To ensure the operation can run under sunlight.
UV Photon Counting
Photons counting to evaluate the intensity of corona discharge is available. Data are flexible to use for various developments.
Adjustable UV Gain
Gain adjustable. If used for integrated development, it can adjust to read the current UV gain voltage through the serial port.
Small, Light & Stable
Compact. Dedicated aerial plug cable and power adapter. It can work for a long time in harsh environments with stable performance.
Customer Customisation
As a mono UV detection component, it is highly expandable provided with SDK for different customised applications.
OPTIMIZED APPLICATION

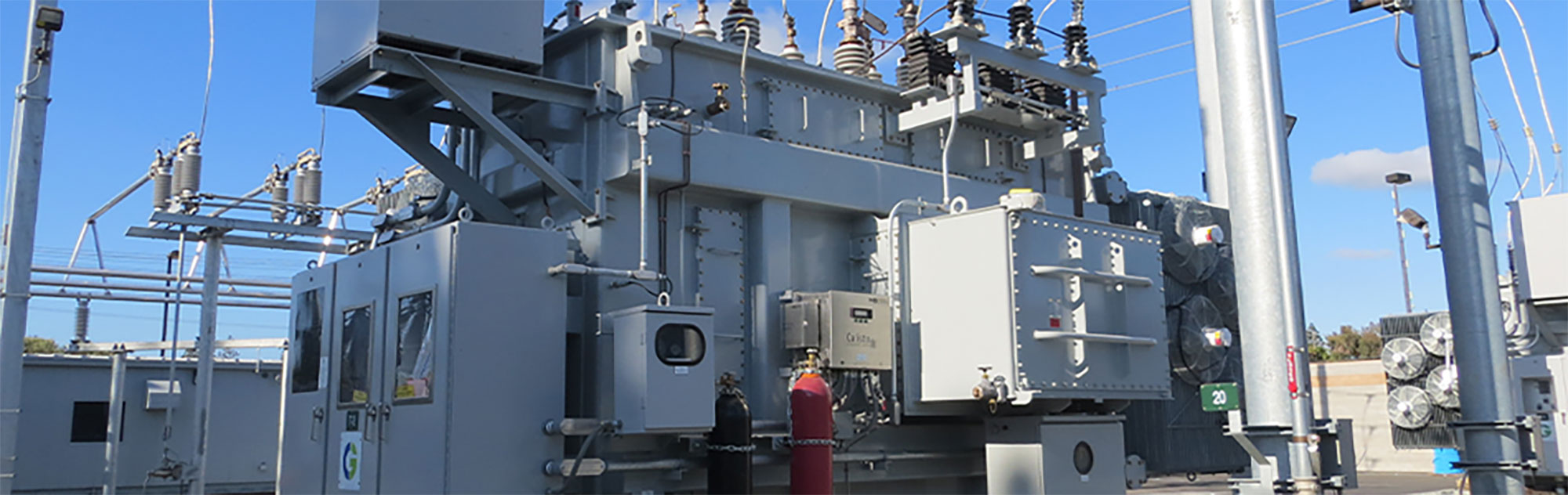

HIGH VOLTAGE ELECTRICAL EQUIPMENT SUCH AS SUBSTAIONS
RAILWAY & SUBWAY POWER SUPPLY LINES

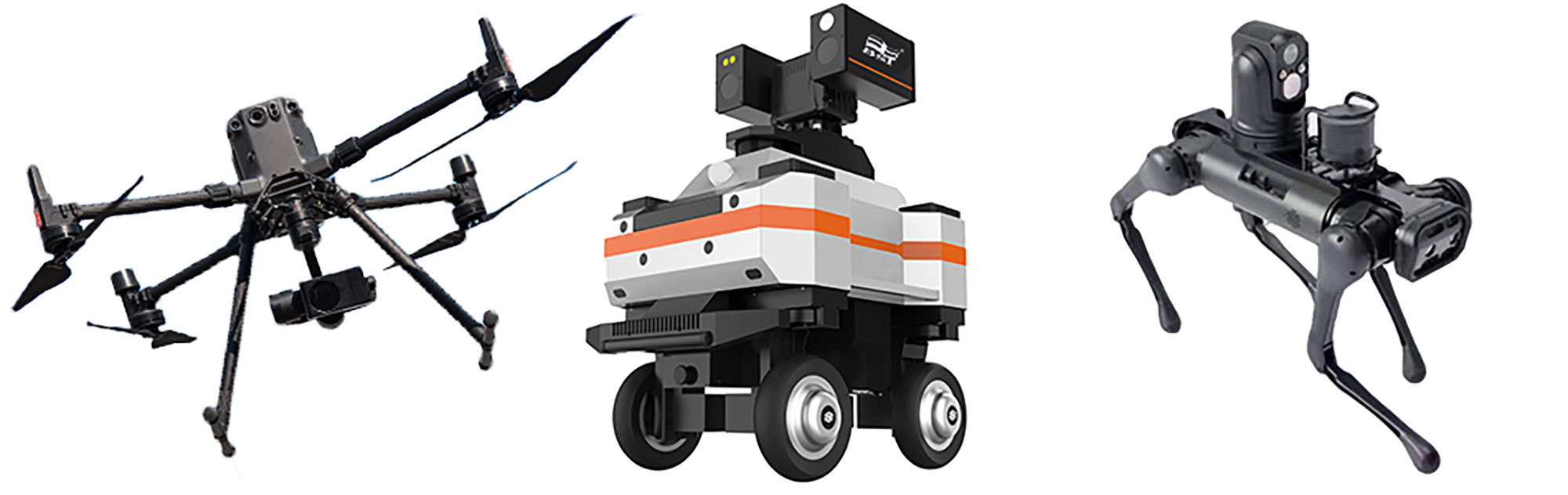

FOR INTEGRATION WITH DRONE, ROBOT & AIBO IMAGING SYSTEMS
TECHNICAL SPECIFICATIONS
UV -IMAGE INTENSIFIER
Cathode Sensitivity
≥40mA/W@255nm
Quantum Efficiency
≥25%
MCP Gain
≥105@1750V
Resolution of Image Intensifier
>18 lp/mm
FILTER
Out-of-band Rejection
240nm ~ 280nm
Center Wavelength fo Optical Filter
265nm
LENS
Angle of Vision
13o x 13o (Optional: 5ox4o Telephoto; 21.5ox12.5o Wide-angle)
Focal Length
50mm (Optional: 112mm Telephoto; 35mm Wide-angle)
INPUT / OUTPUT
Image Resolution
720H x 576V (Optional: 1280 x 720 for Wide-angle)
Signal
PAL (Optional: HDMI & LVDS Digital Output for Wide-angle)
Communication Control
RS-232
Interface
J30J-21ZK Aviation Plug
PHYSICAL CHARACTERISTICS
Size with Shell (Plug Not Included)
152 x 53 x 53mm (Optional: 100 x 50 x 50mm for Wide-angle)
Weight with Shell
750g (Optional: 400g for Wide-angle)

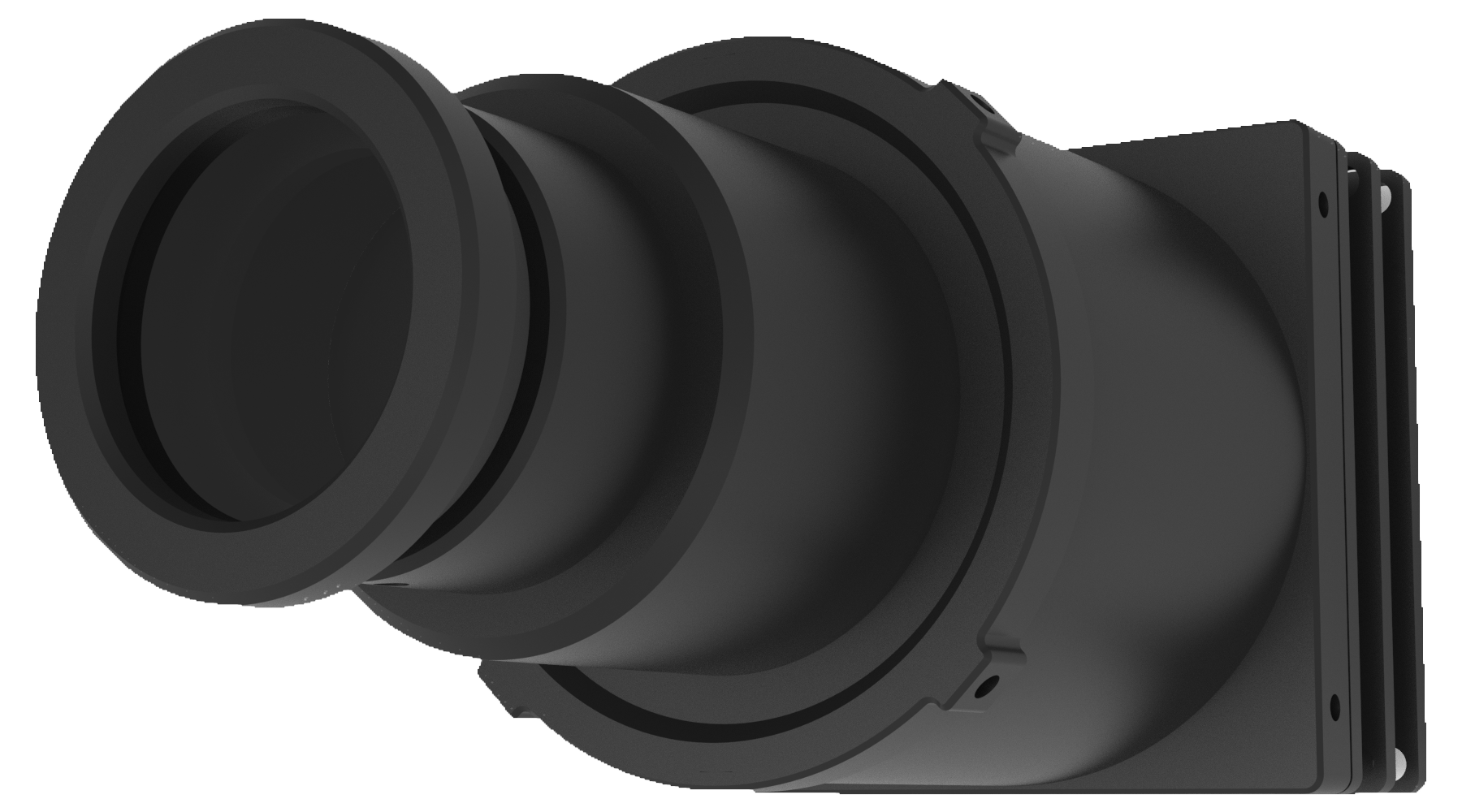

Size of Inner UV Module
145 x 45 x 45mm (Optional: 90 x 42 x 40mm for Wide-angle)
Weight of Inner UV Module
500g (Optional: 160g for Wide-angle)
WORKING ENVIRONMENT AND POWER SUPPLY
Operating and Storage Temperature
-25oC ~ +55oC
Operating Humidity
≤95% (No Condensation)
Power Supply
DC 12V
Power Consumption
≤4W
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
