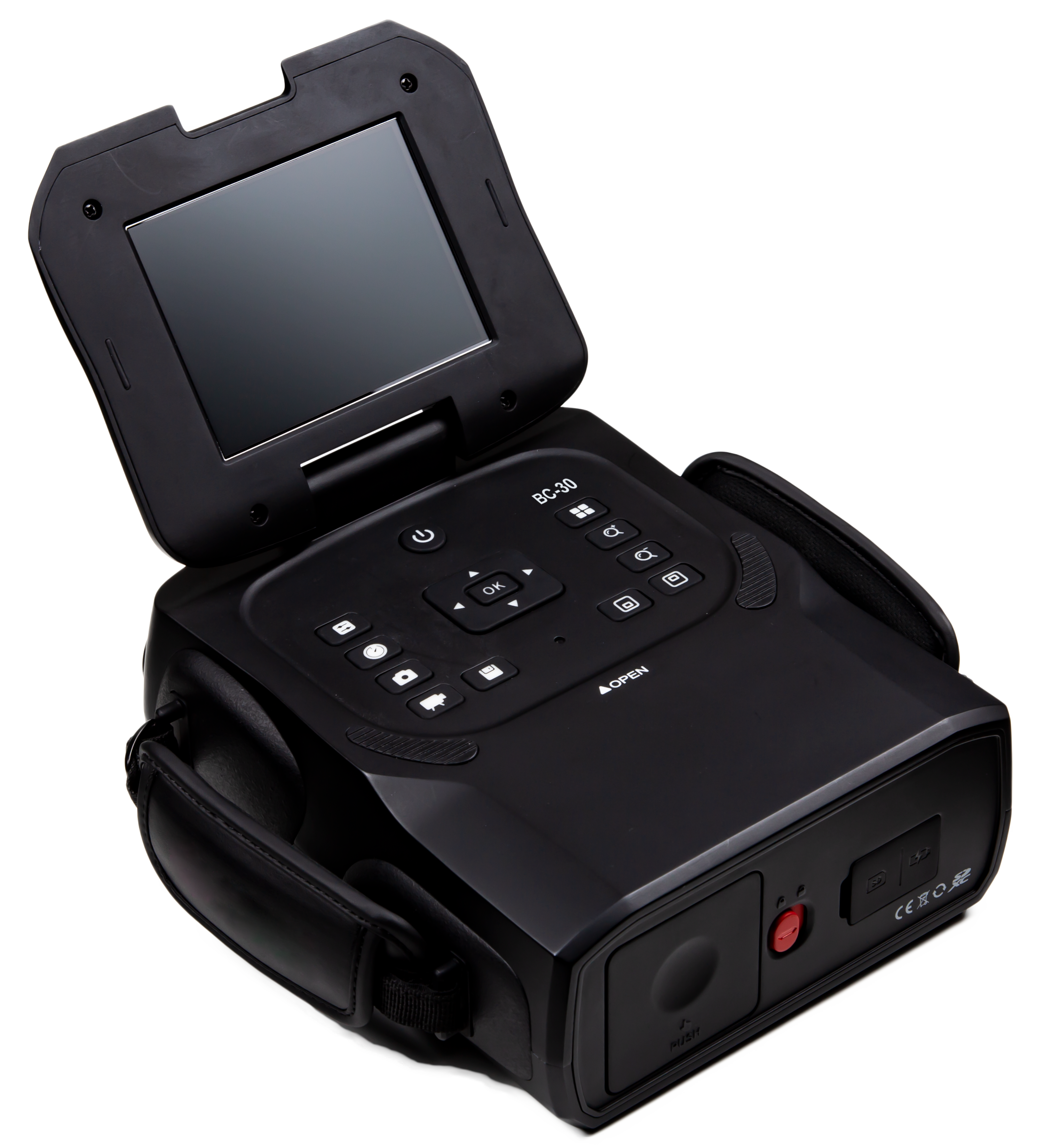

BC-30 Daytime Corona Cameras is a non-destructive testing (NDT) technology widely used to detect corona defects for Substations and transmission lines.
BC-30 employs UV detecting technology, out-of-band rejection UV filter technology and visual optical fusion algorithm technology. It can eliminate the disturbance of sunlight background and detect wear UV signals generated by corona.
BC-30 is an advanced multispectral camera with the combination of a UV camera, an infrared (IR) camera and a visible light camera allows performing a corona and thermal inspection simultaneously and efficiently.
Overview
- No tailing, pinpointing for precise positioning
- Photons counting for quantitative analysis
- Daytime and night application
- Adjustable UV gain from 0-100%
- High Overlay Accuracy
- UV, IR & Visible Camera
- Closed enclosure, low heat, continuous stable operation
- 5 inch Large deluxe reflective 640*480 pixels LCD
FEATURES
High Sensitivity UV Sensor
High-performance UV Sensor can detect weak Corona signal, 240-280nm out-of-band rejection Technology able to use in both daytime and night.
Precise Defects Positioning
The one milliradian overlay accuracy can give the fusion of visible, IR, UV images. By adjust gains to obtain pinpoint UV signal and analyse the exact location of the defects.
UV Photon Counting
5 Kinds of ROI available. 4 sub ROI can give individual distribution of photons and accurate photon numbers obtained to precisely analyze severe defects.
Adjustable UV Gain
Gain adjustable. If used for integrated development, you can adjust and read the current UV gain voltage through the serial port.
Still Pictures and Video
Still pictures and videos can be recorded and played back. The 32G TF card can store all data for further analysis.
Simultaneous and Efficient
It is the Integration of faults, jointly locating partial discharges and abnormal temp spots.
Rugged Reliable casing
Rugged, reliable casing, applicable to the severe atmospheric environment for continuously stable operation. Reliable material & craftsmanship to ensure excellent performance.
Ergonomic Design
The camera is a compact design with a built-in Li battery. The one key/function operation is easy to use. Portable, 2.9 kg. Standard tripod mounting hole. Large size sun shading board.
High Pixels IR Sensor
It features with 640x480 pixels Infrared Sensor with ±2oC accuracy to display temperature points and their position in real-time.
Screen Display
Show both corona and temperature defects in the same location
Screen Display: 6 Modes
UV
IR
VIS
UV-VIS Combined
IR-VIS Combined
UV-IR-VIS Combined
TECHNICAL SPECIFICATIONS
UV - OPTICAL PROPERTIES
Field Of Vision (W x S)
10o x 8o
Spectral Range
240nm ~ 280nm
Minimum Discharge Sensitivity
1Pc/10m
Minimum RIV Sensitivity
3.6dBμV (RIV) @ 10m
Minimum UV Sensitivity
2 x 10-18 watt/cm2
Pixel
720 x 576
Focus Range
1.5m ~ ∞
Focus
Auto
VISIBLE - OPTICAL PROPERTIES
Minimum Visible Light Sensitivity
0.1 Lux
Focus Range
1.5m ~ ∞
Focus
Auto
IR - OPTICAL PROPERTIES AND DISPLAY
Pixels
640 x 480
Temp Range
-20oC ~ +600oC
Temp Accuracy
±2 or ±2%
Display Modes
Combine (UV+Vis, IR+Vis, UV+IR), UV only, IR only, Vis only
Display Type
5.7-inch Color Transflective Sunlight Readable LCD
Display Brightness
800 cd/m3
Field of View
12.4o x 9.9o
SAVE AND PLAYBACK
Video
Provided
Still Images
Provided
Data Save
32G TF Card
Video Format
MP4
Stills Format
JPG
Playback Function
Video and Still Images
CHARACTERISTICS
Detector
Life Without Attenuation
Images Fusion
Images Fusion Algorithm
Colours
Multiple Colours Selectable
POWER SOURCE
Battery
Rechargeable Battery
Working Hours
≥2 Hours
Adapter
DC14.8V (18.5W)
ENVIRONMENTAL
Storage and Operation Temp
-20oC ~ +55oC
PHYICAL PARAMETERS
Dimensions L x W x H
229mm x 131mm x 105mm
Weight
2.8kg
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
