While a thermometer is hardly the most exciting device, it's essential to our lives. They are commonly used to take temperatures - and in the field of HVAC, temperature control is all-important.
As little as 1°C could represent a considerable change in equipment status and compliance with regulations, such as the proper temperature at which a supermarket must store meat. Precision is essential and matters to our well-being.
Accurate temperature measurements are essential for reading air differences, superheat, and subcooling. HVAC thermometers are most commonly used to measure air, water, refrigerant, and copper lines' temperatures, and these measurements are vital to locating the source of potential hazards or defects.

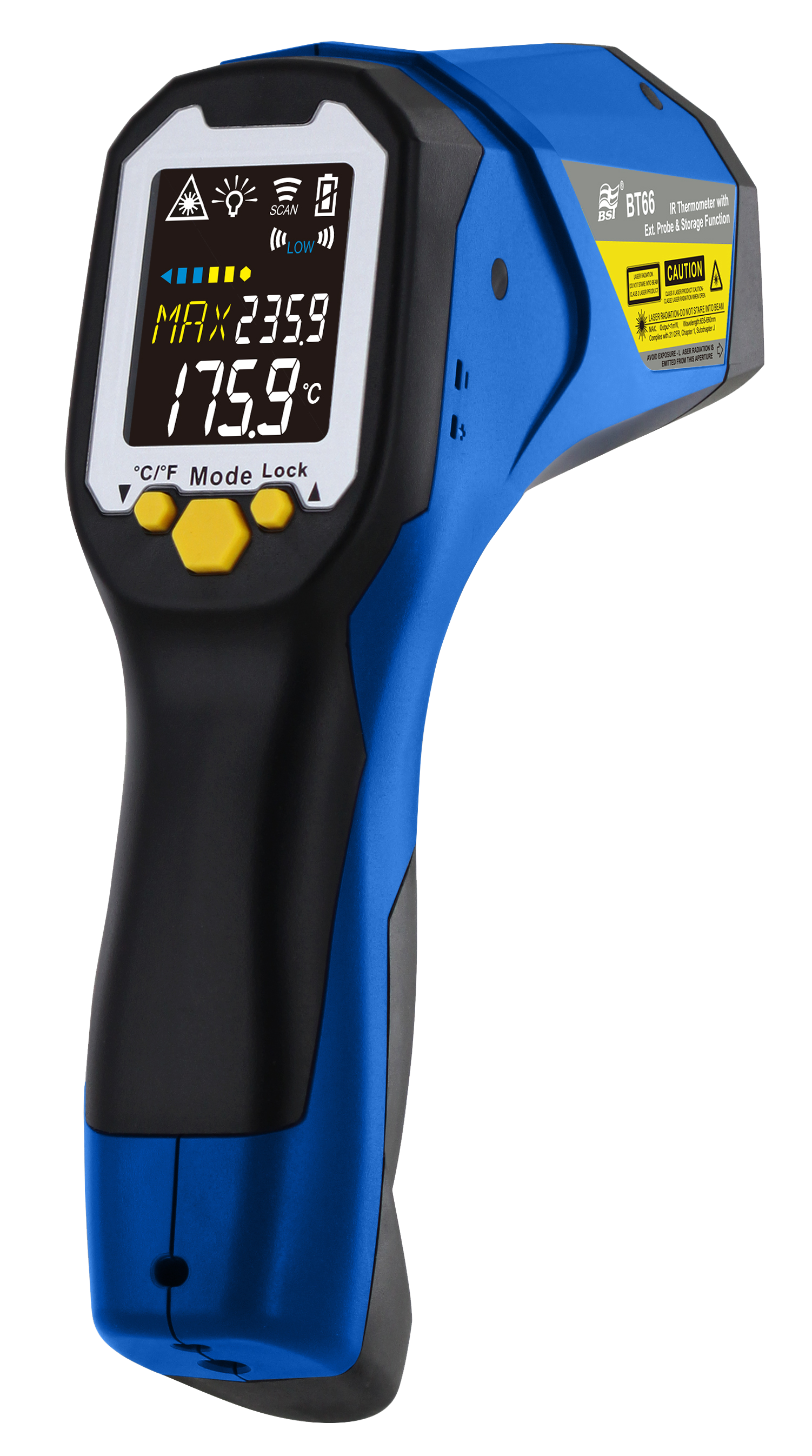

BT-65/66 professional thermometer gun is ideal for troubleshooting, diagnosing, and performing routine spot-checking of car system performance for brakes to radiators, HVAC system, and engine timing.
FEATURES
- Versatility: HVAC, Automotive, Construction, Power plant, industry
- Wide Measurement Range: (100 to 2000°C / 212 to 3632°F )
- High DS (Distance to Spot) Ratio: 75:1
- Laser Sight Technology for Better Targeting; Dual Laser
- Colour Bar Displays Temperature in Max / Min Mode
- Backlight & Memory Mode
- Built-in K Thermocouple Socket
- Rugged Casing with 2M Drop Proof
- Ergonomic Handle with Rubber Boot
- Tripod Mounted
- AA x 2 Battery
- CE & UKCA complied
OPTIMIZED APPLICATION
AUTOMOTIVE
HVAC
INDUSTRY
TECHNICAL SPECIFICATIONS
Description
IRT + Laser + Thermocouple Socket, with USB Function, with SD Card Storage, with Color Bar Display
Measurement Range
100 ~ 2000oC (212 ~ 3632oF)
Measurement Range#
-64 ~ +1400oC (-83.2 ~ 2552oF)
Operating Range
0 ~ 50oC (32 ~ 122oF)
Accuracy, Tamb= 23±3oC
±2% of reading
External Probe Accuracy, Tamb=23±6oC#
±1% of reading or 1oC (1.8oF), whichever is greater
Emissivity Range
0.95 default, adjustable from 0.1 to 1 step .01
Resolution
0.1oC / 0.1oF at -83.2 ~ +999.9 (oC / oF), Otherwise 1oC / 1oF
Spectral Range
2.3μm
Response Time (90%)
1sec
Distance: Spot
75:1 (90% energy covered)
Internal Memory
Detailed 24 Memories with Temperature & Emissivity
Mode
Max / Min, Diff, Avg, Lock, Hi / Low Temp Alarm
Memory Type
Support Micro SD card (Recommend to use attached Micro SD card)
Thermocouple Probe
K Type Thermocouple socket (K probe not included)
Output Interface
USB, SD card
Power Supply
AA x 2pcs
Battery Life
Typical 14 hours, minimum 10 hours continuous use (with laser and backlight) Typical 20 hours, minimum 16 hours continuous use (with backlight only) *Backlight is default set fixed ON/Laser is selectable ON/OFF
Dimensions
203 x 176 x 58.3 mm (8 x 7 x 2.3 inch)
Weight
~400 g (14.1 oz) including batteries
#Actual temperature range depends on the TC probe selected
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
