We need a proper earth grounding to benefit our daily activities and facilities. It helps us not to hurt due to faulty equipment or home appliance installation. Damage from lightning strikes and induced voltages also hazarded to us. Over time, ground systems can degrade or become ineffective. The risks from ground system deterioration include potentially deadly electrical shock situations, equipment damage and heat build-up on a single piece of electrical equipment that is dangerous to our community.


All British Standard Tester ER models (ER-80A / 80M / 81 / 82M / 83A) can perform Earth resistance tests (using the 2, 3 & 4 terminals rod method) to determine the connection from equipment to the grounding system for safety assurance.

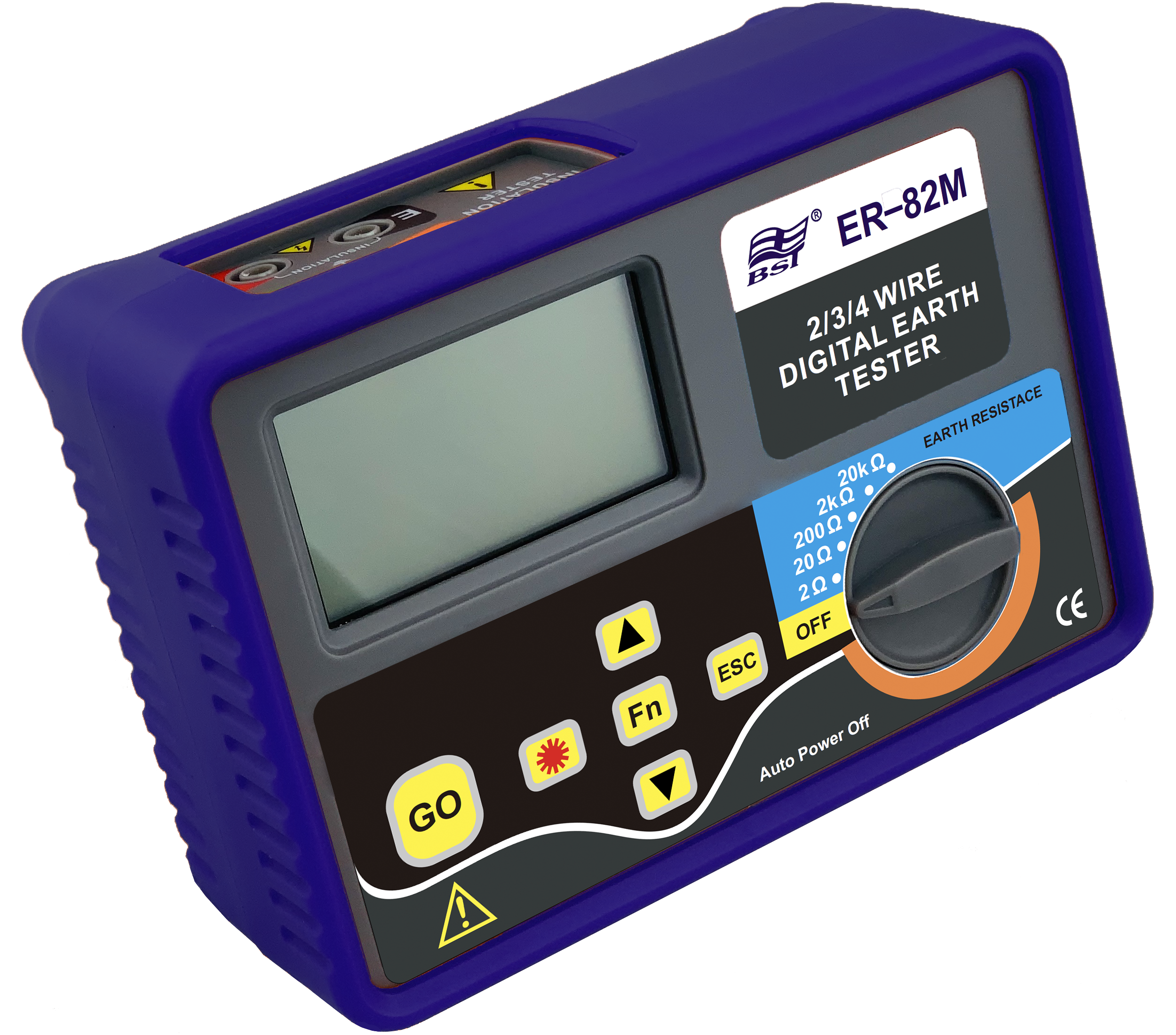

ER-82M and ER-83A are compact design 4-terminal earth resistance testing instruments to provide flexibility for manual (ER-82M) and automatic (ER-83A) operation testing. Both models employ measuring functions for ART (Attached Rod Technique) testing capabilities. The ER-82M / ER-83A can measure earth resistance from 0.030 Ω to 20 kΩ and are also capable of soil resistivity testing (ρ). Both are powered by six LR6 / R6 AA 1.5V Alkaline Battery, which are widely available. The testers are rated IP54 for outdoor use with a safety design to CAT IV 100 V. The basic kit includes the test leads, connectors/adapters, earth rods and a rugged carry pouch – everything you need to start testing in one package.

Functions

- 2-pole / 3-pole / 4-pole earth resistance tester

- Soil resistivity test (ρ)

- 5 manual-range earth resistance measurements

- Automatic or manual selection of test frequency (94Hz / 105Hz / 111Hz / 128Hz)

- Automatic calculation of soil resistivity measurement results

- Auxiliary ground rod resistance measurement

- Warning for excessive noise and high Auxiliary Earth rod resistance

- Interfering voltage measurement (0~50V)

- Interfering frequency measurement (16~500Hz)

- Compensate test cable resistance Rk function

- LED backlight for easy readout in dim-lit environments

- Automatic shutdown (No operation for 10 minutes)

- Additional robust holster improves protection

- Safety: EN61010-1 CATIV 100V

TECHNICAL SPECIFICATIONS

EARTH RESISTANCE

Range

Test Range

Resolution

Accuracy

2 Ω

0.030 ~ 2.099 Ω

0.001 Ω

±(3% + 5dgt)

20 Ω

0.01 ~ 20.99 Ω

0.01 Ω

±(2% + 3dgt)

200 Ω

0.1 ~ 209.9 Ω

0.1 Ω

±(2% + 3dgt)

2 kΩ

1 ~ 2099 Ω

1 Ω

±(2% + 3dgt)

20 kΩ

0.01 ~ 20.99 kΩ

0.01 kΩ

±(2% + 3dgt)

GROUND RESISTIVITY “ρ”

Range

Test Range

Resolution

Accuracy

2 Ω

0.18 Ω.m ~ 1.318 kΩ.m

0.01 Ω.m

ρ = 2 x Π x a x Rg

20 Ω

0.18 Ω.m ~ 13.18 kΩ.m

0.01 Ω.m

ρ = 2 x Π x a x Rg

200 Ω

0.62 Ω.m ~ 131.8 kΩ.m

0.01 Ω.m

ρ = 2 x Π x a x Rg

2 kΩ

6.28 Ω.m ~ 1318 kΩ.m

0.01 Ω.m

ρ = 2 x Π x a x Rg

20 kΩ

62.80 Ω.m ~ 1999 kΩ.m

0.01 Ω.m

ρ = 2 x Π x a x Rg

Project

Range

Resolution

Accuracy

Interference Voltage (Ust)

50.0 V

0.1 V

±(2% + 2dgt)

Interference Voltage Frequency (Fst)

16 Hz ~ 500 Hz

0.1 Hz

±(1% + 0.5 Hz)

BATTERY VALIDITY TEST (5 SEC TEST, 30 SEC INTERVAL)

Function

Test Resistance

Battery Validity Test

Ground Test

10 Ω

More Than 1000 Times

SPECIAL FUNCTION

Display Reading

2000 Counts

Manual Range

Automatic Shutdown

10 minutes (No Operation)

Data Hold

Auto

LCD Backlight

Lead Resistance Removal (Rk)

2 Wire Measurement

3 Wire Measurement

4 Wire Measurement

Ground Resistivity “ρ”

SPECIAL FUNCTION

Size (W x H x D)

168 mm x 118 mm x 70 mm

Weight

~760g (With Battery)

Battery

LR6 / R6 AA 1.5v x 6 Alkaline Battery

Accessories

Banana Plug + Alligator Test Lead Set x 1 (Red 20m, Yellow 15m, Green 5m, Black 5m), Earth Rod x 4, Manual x 1

Colour

Grey + Blue

Standard Packaging

Nylon Carry Pouch x 1 & White Box x 1

Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
