An insulation tester has been introduced to help test equipment for electrical utilities, industrial applications, data/ telecommunications and electrical contractors. Why do we test insulation over time? When insulation breaks down, it degrades for many reasons. If insulation is compromised, injury or even the danger of fire equipment failure and lost production time are possible.
What causes the insulation to break down? It may happen when electrical stress, too much voltage or even too little in a particular application can cause the insulation to crack for a breakdown.
What will an insulation tester tell us? When we start thinking about replacing the cable. The cable links current when it gets to an unsafe point. Cable issues will lead to current leakage, affecting the device's performance. Conversely, an insulation tester will help us predict when the cable needs replacing. Knowing this information lets us ensure we have the parts to repair or replace. To have a maintenance schedule as opposed to experiencing a catastrophic failure.

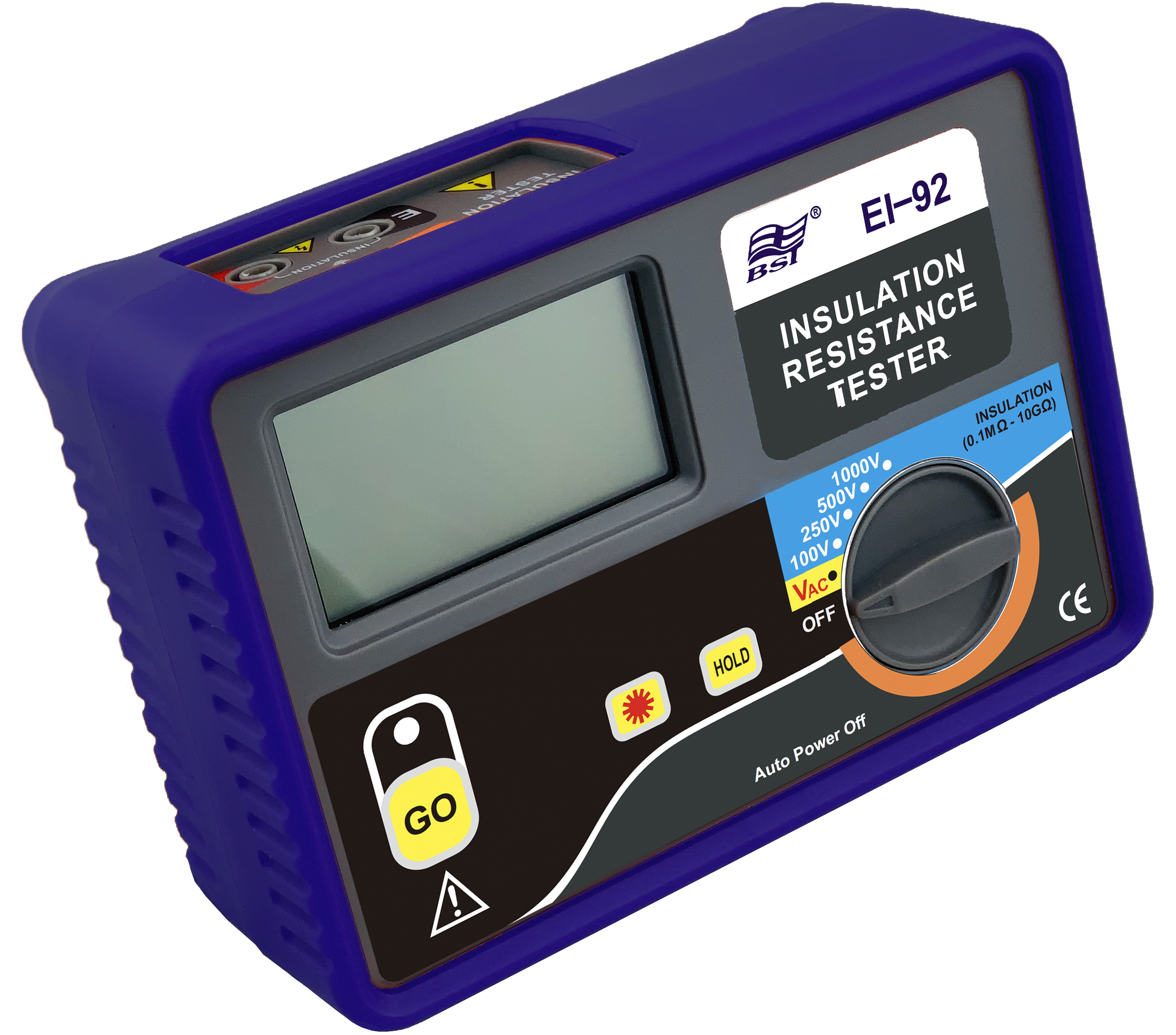

The British Standard Tester EI insulation tester models (EI-91 / 92 / 93) can perform insulation tests (IR test Voltage range
50V to 2500V) to assure the insulation resistance (0.05MΩ to 20GΩ) for your equipment safety. They are suitable and commonly used in various applications: EI-91 Telecommunication & wiring contracting, EI-92 industries & home appliances and EI-93 Motor manufacturer & production factories.
Functions
- Multi-range insulation resistance test
- Insulation test voltage EI-92 (100V ~ 1000 V)
- Insulation resistance test EI-92 (0.1 MΩ to 10 GΩ)
- Test current > 1.0 mA (Comply with BS7671, HD 384 and IEC364)
- Broad application scope: Telecommunication, Home appliances, Industries, Motor manufacturers
- Low insulation resistance Alarm
- Suitable for power, electrical and industrial measurements
- AC voltage measurement (20 V ~ 600V)
- LED backlight for easy operation in poorly lit areas
- Automatic shutdown (No operation for 10 minutes)
- Additional robust holster improves protection
TECHNICAL SPECIFICATIONS
RANGE FUNCTION |
RANGE |
RESOLUTION |
ACCURACY |
Insulation Resistance |
50 V |
0.000 M ~ 2.000 M |
0.001 M |
- |
2.00 M ~ 20.00 M |
0.01 M |
20.0 M ~ 200.0 M |
0.1 M |
200 M ~ 500 M |
1 M |
100 V |
0.000 M ~ 2.000 M |
0.001 M |
±(3% + 5dgt) |
2.00 M ~ 20.00 M |
0.01 M |
20.0 M ~ 200.0 M |
0.1 M |
200 M ~ 1000 M |
1 M |
250 V |
0.000 M ~ 2.000 M |
0.001 M |
±(3% + 5dgt) |
2.00 M ~ 20.00 M |
0.01 M |
20.0 M ~ 200.0 M |
0.1 M |
0.200 G ~ 2.000 G |
0.001 G |
2.00 G ~ 2.50 G |
0.01 G |
±(5% + 5dgt) |
500 V |
0.000 M ~ 2.000 M |
0.001 M |
±(3% + 5dgt) |
2.00 M ~ 20.00 M |
0.01 M |
20.0 M ~ 200.0 M |
0.1 M |
0.200 G ~ 2.000 G |
0.001 G |
2.00 G ~ 5.00 G |
0.01 G |
±(5% + 5dgt) |
1000 V |
0.000 M ~ 2.000 M |
0.001 M |
±(3% + 5dgt) |
2.00 M ~ 20.00 M |
0.01 M |
20.0 M ~ 200.0 M |
0.1 M |
0.200 G ~ 2.000 G |
0.001 G |
2.00 G ~ 10.00 G |
0.01 G |
±(8% + 5dgt) |
Test Current |
>1mA |
AC Voltage |
Range |
Accuracy |
Resolution |
Frequency Response |
Overload Protection |
20 V ~ 600 V |
±(2% + 5dgt) |
1V |
40 ~ 400Hz |
600 Vrms |
BATTERY VALIDITY TEST (5 SECOND TEST, 30 SECOND INTERVAL)
Function |
Test Resistance |
Battery Validity Test |
Insulation Test |
50 V |
0.05 MΩ |
More Than 1500 Times |
100 V |
0.1 MΩ |
More Than 1000 Times |
250 V |
0.25 MΩ |
More Than 800 Times |
500 V |
0.5 MΩ |
More Than 600 Times |
1000 V |
1 MΩ |
BASIC FEATURES
Safety Specifications |
IEC61010 CATIII 600V, IEC61557-1, 2 IEC61326-1, -2-2 IEC60529(IP40) |
Display Reading |
2000 Counts |
Auto Power Off |
10 minutes (No Operation) |
Data Hold |
Auto |
LCD Backlight |
White |
Battery |
LR6 / R6 1.5V x 6 AA Alkaline Battery |
Weight |
~670g (With Battery) |
Dimensions (W x H x D) |
168 mm x 118 mm x 70 mm |
Accessories |
Test Lead x 1 pair, Alligator Clips x 1 pair, Manual x 1 |
Standard Packaging |
Nylon Carry Pouch x 1, White Box x 1 |
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
