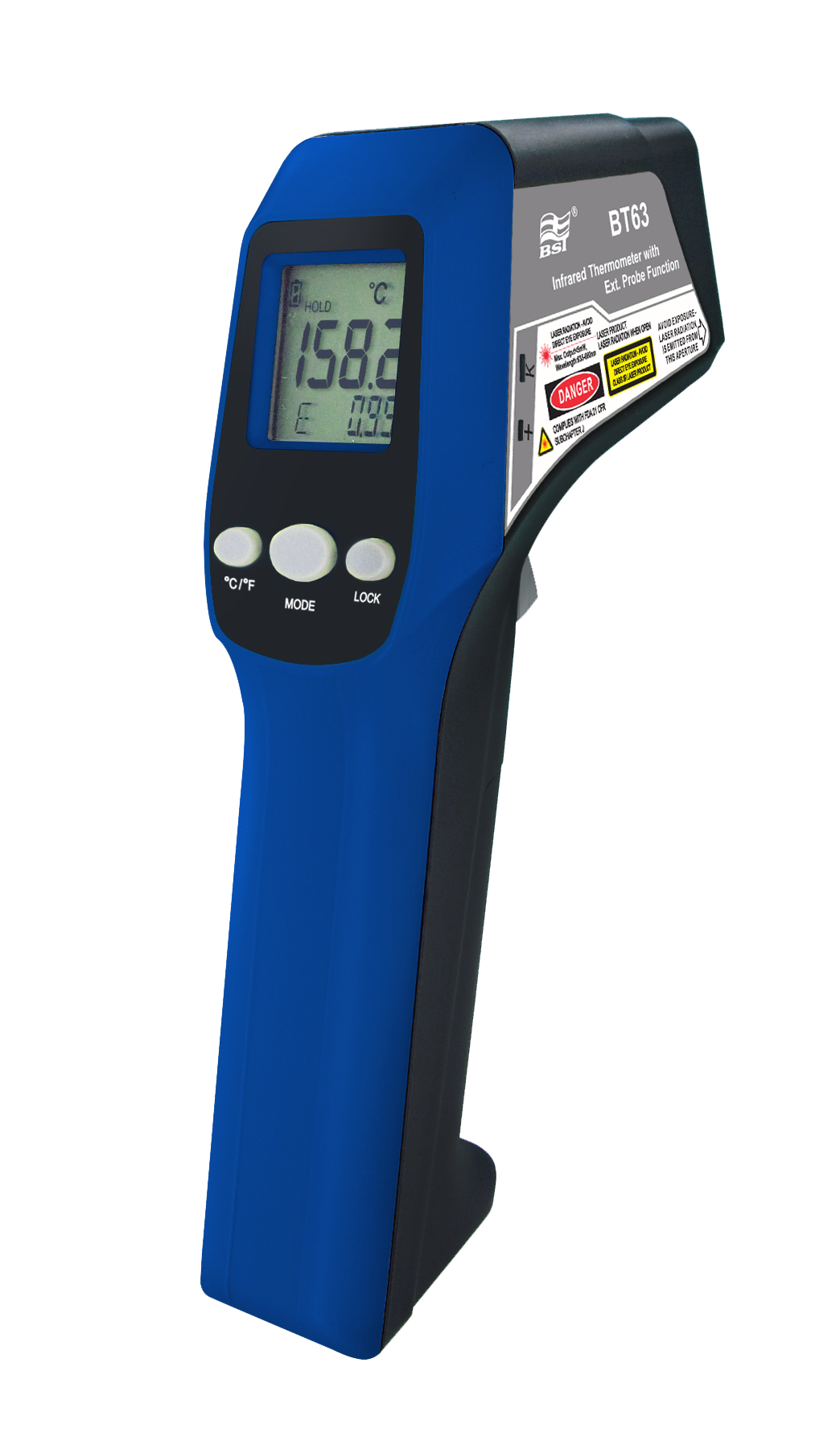

BT-63 is a gun-type infrared thermometer with laser and backlight for easier targeting and operating. The good temperature range with real-time maximum reading makes the BT63 the ideal tool for various applications.
An automotive infrared thermometer is one of the most exciting and valuable applications of an infrared thermometer gun, such as the BT-62/63/64. Use the temperature gun to troubleshoot, diagnose and perform routine spot-checking of car system performance for brakes to radiators, HVAC system, and engine timing. Besides, it can also help with industry and domestic usage
Below is a quick summary of how you can use an infrared thermometer for automotive diagnostics:
- Measure coolant temperatures at the close end of the return line
- Test for blockages in a radiator
- Measure belt and pulley temperatures
- Diagnose cylinder misfires by scanning the exhaust manifold
- Test the HVAC system by measuring temperatures of inlets, outlets, supply lines, output vents
and condenser
- Detect excessive heat in brake components
- Evaluate the heat dispersal dynamics of the brake system
- Monitor tire temperature on long trips to avoid blowouts
FEATURES
- Versatility: Automotive, HVAC, HACCP, Power, Industry, laboratory
- Measurement Range: -60~550oC(-76~1022oF)
- Full Range Accuracy: ≥0oC: ±2% of reading or 2oC(4oF) whichever is greater <0oC: ±(2oC + 0.05/oC)oC
- Distance to Spot: 12 : 1
- Recall the Last Reading
- Built-in K Thermocouple Socket
- Large LCD Screen, with Bright Amber Color Backlight
- Auto Power Off: 15 Seconds
- User-Friendly Interface
- CE & UKCA complied
OPTIMIZED APPLICATION
AUTOMOTIVE
HVAC
ENGINE TIMING
TECHNICAL SPECIFICATIONS
Description
IRT + Laser + Thermocouple socket
Measurement Range
-60 ~ +550oC (-76 ~ +1022oF)
Measurement Range#
-64 ~ +1400oC (-83.2 ~ 2552oF) with Thermocouple
Operating Range
0 ~ 50oC (32 ~ 122oF)
Accuracy, Tobj= 15 ~ 35oC, Tamb= 25oC
±1.5oC (2.7oF)
Accuracy, Tamb= 23±3oC
Tobj= 0 ~ 550oC: ±2% of reading or 2oC (4oF) whichever is greater, Tobj= -50 ~ 0oC: ±(2.5oC + 0.05/oC)
External Probe Accuracy, Tamb=23±6oC#
±1% of Reading or 1oC (1.8oF), whichever is greater
Emissivity Range
0.95 default, adjustable from 0.1 to 1 step .01
Resolution
0.1oC / 0.1oF at -83.2 ~ +999.9 (oC / oF), Otherwise 1oC / 1oF
Response Time (90%)
1sec
Distance: Spot
12:1
Mode
Ave, Dif., Hi / Low Alarm, Real-Time Max / Min, Lock
Power Supply
AAA x 2pcs (Alkaline battery)
Battery Life
Typical 18 hours, minimum 14 hours continuous use (WITH laser and backlight) Typical 180 hours, minimum 140 hours continuous use (WITHOUT laser and backlight) *Laser & Backlight are ON/OFF selectable
Laser
Class IIIa Laser
Dimensions
153 x 114 x 48 mm (6 x 4.5 x 2 inch)
Weight
~180 g (6.3 oz.), including batteries (AAA x 2pcs)
Thermocouple Probe
K Type Thermocouple socket (K probe not included)
#Actual temperature range depends on the TC probe selected
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
