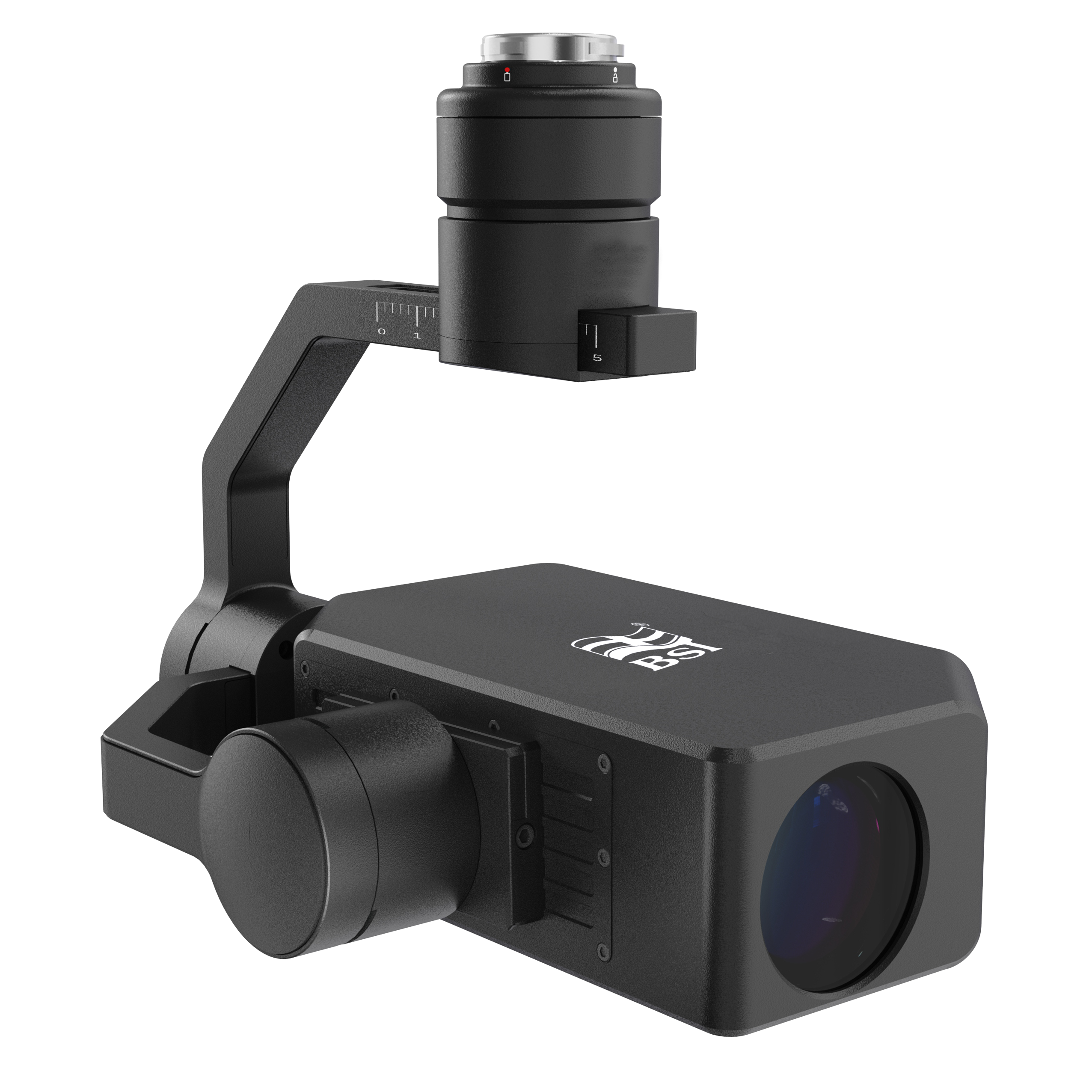

BC-20 DR (Drone) is a corona detection for Drone remote operation. The pan-tilt integrates with the BC-20 UV imager with good seismic resistance and stability. It can accurately locate corona and arc at all times to display and record the number of discharge photons. Its Drone operation is very convenient and cost-effective for HV facilities maintenance.
BC-20 DR corona imaging system can be used for prospective and maintenance live detection of power transmission lines and substations, having a robust, rigid structure and lightweight merits. It is a great tool to help with airborne inspections, surveillance, fixed ongoing observations etc. Fit for gimbaled payloads, Drones and OEM solutions, providing excellent UV automated detection.
Overview
- PTZ systems, adapt to a variety of UAVs
- Automatic focus, easy to observe and detect
- Multi R.O.I. for photos counting
- Real-time HD digital signal data stream
- Flexible flight, remote control & transmission
- Dule F.O.V. switchable by one button
- Gain adjustable from 0% to 100%
- Alarm threshold to quickly diagnose
FEATURES
High Speed Inspection
In the fast flight speed, it can detect and capture weak corona signal, and the image and video are clear without trailing.
High Sensitivity Detector
High-performance UV detectors are suitable for day and night inspections. No interference from the sunlight.
Integrated Design
The control and data transmission through UAV's interface. The UAV and PTZ UV imager can be controlled. The data stream is displayed on remote control.
Accurate Positioning of Corona
Using high-precision image fusion algorithm, it can accurately locate the corona, arc and partial discharge and form a clear image.
Dual F.O.V.
12.6o x 7.2o wide angle F.O.V. for big size objects, and 5o x 3.75o telephoto F.O.V for long distance inspection. One key switch.
Multi R.O.I for photos counting and alarm
5 different region of Interest for photos counting. At the same time, the photon number threshold alarm can be set.

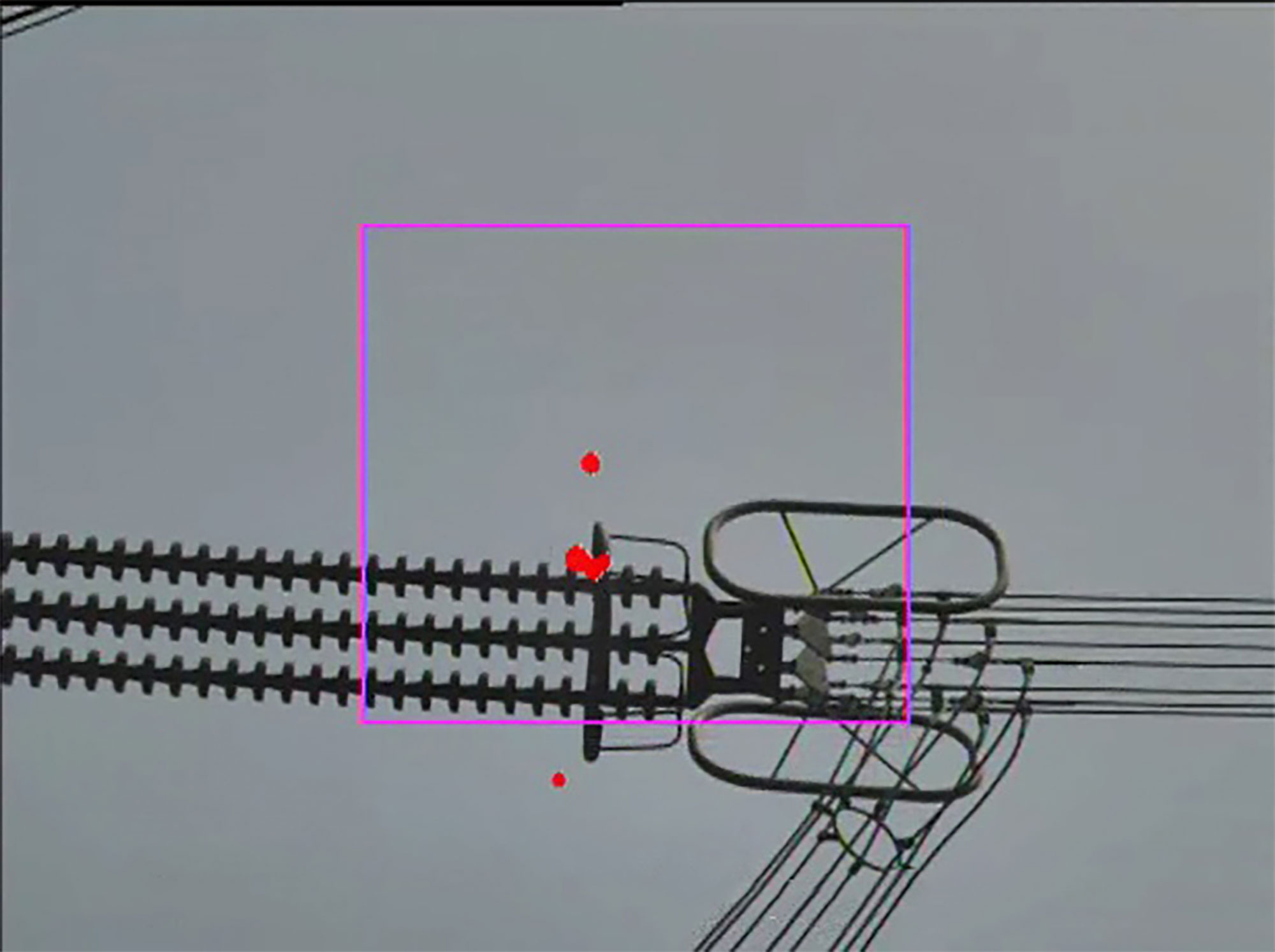

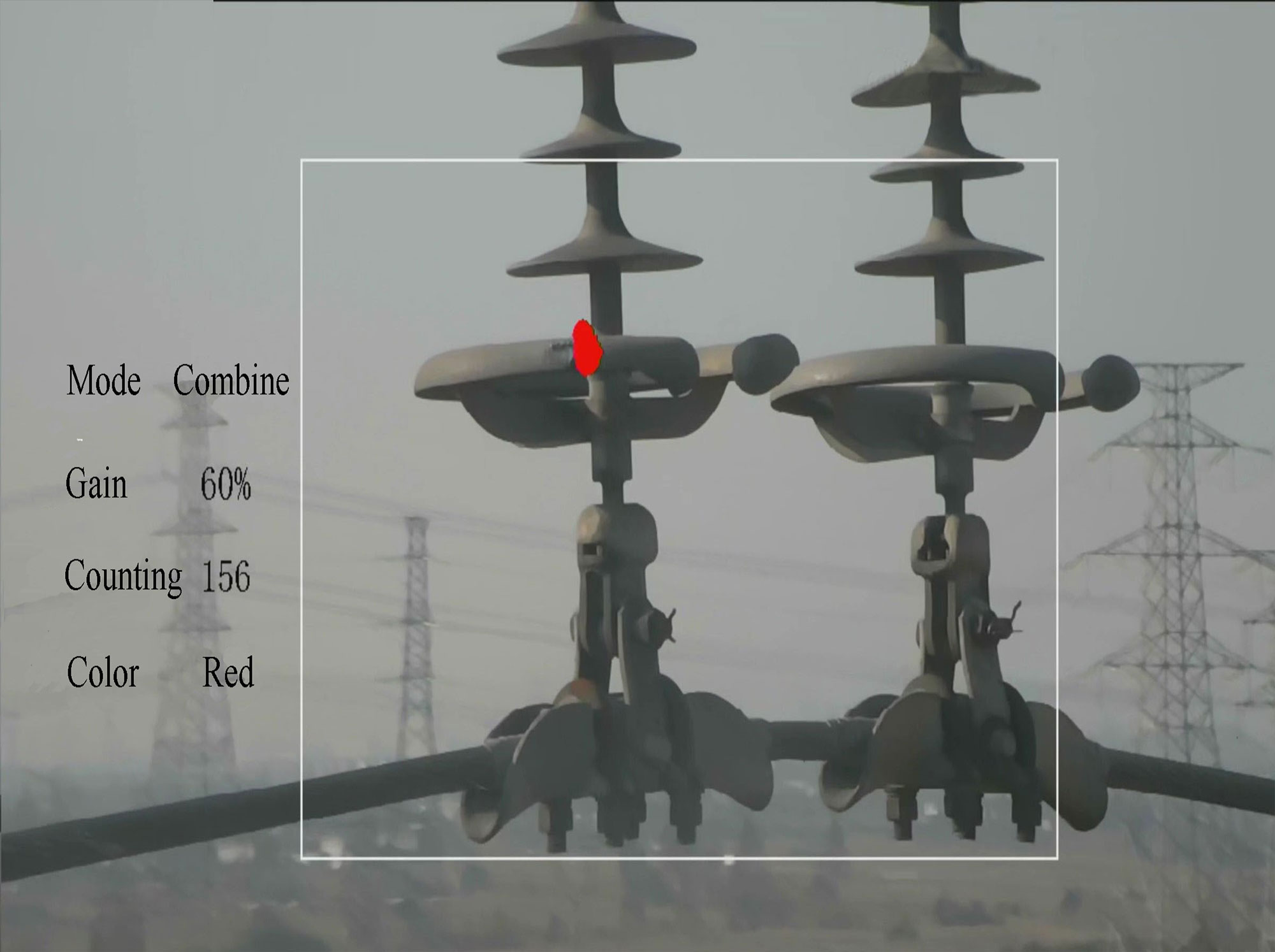

Screen Display
High Resolution
OPTIMIZED APPLICATION

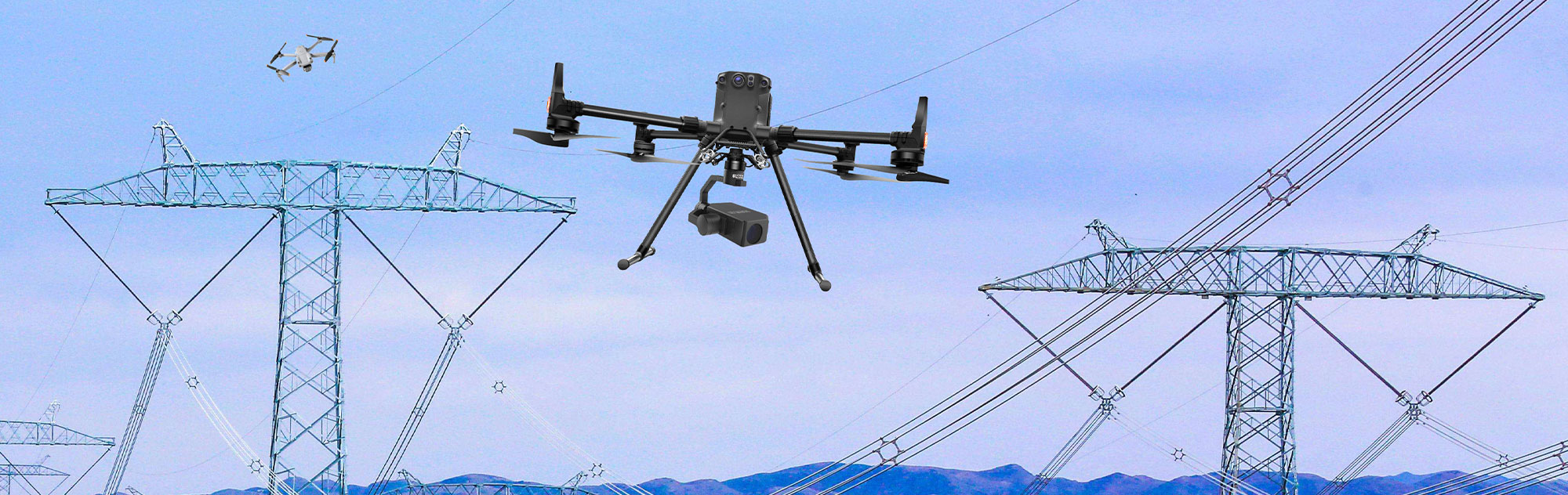

ELECTRIC TRANSMISSION TOWER

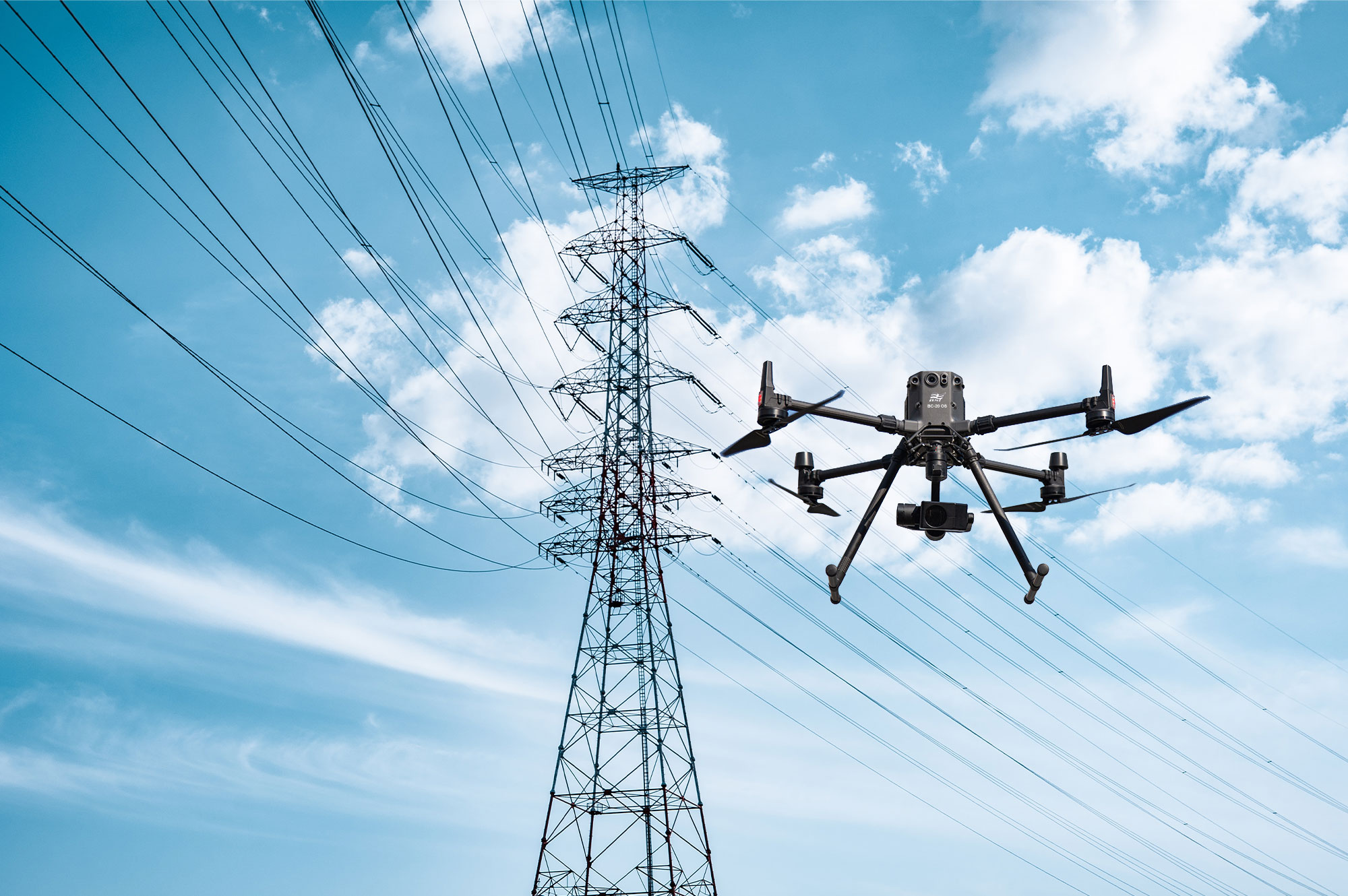

Saves time and reduces the risk of working at heights
ELECTRIC TRANSMISSION TOWER

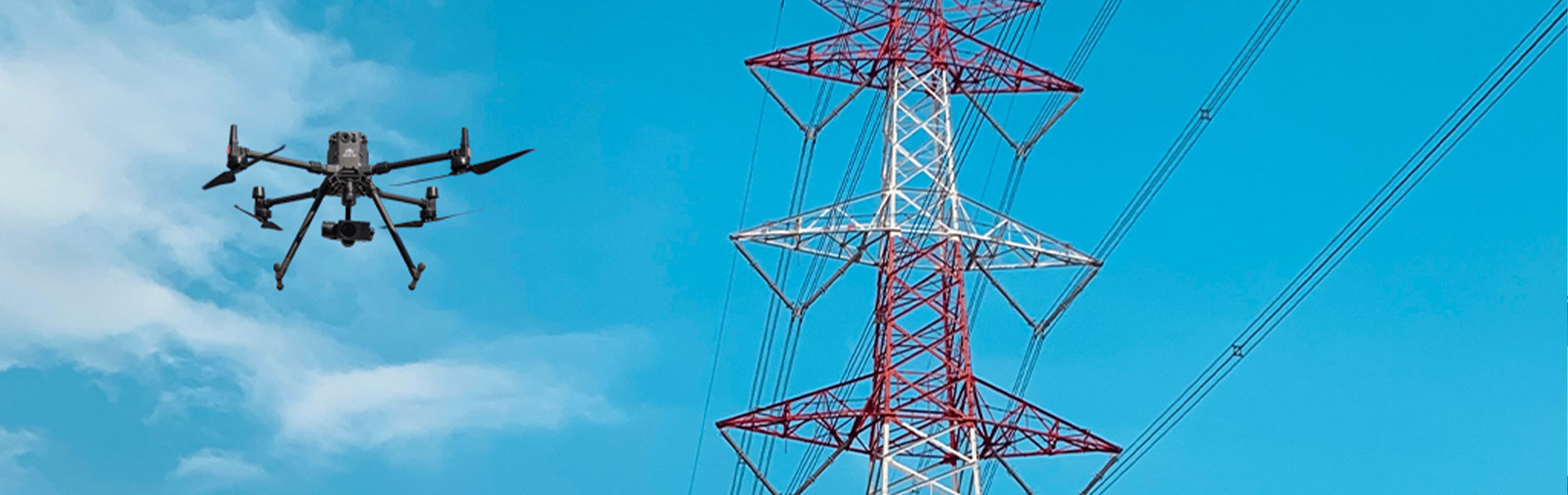

A small drone can be selected to observing the whole scene of inspection
TECHNICAL SPECIFICATIONS
UV - OPTICAL PROPERTIES
Field Of Vision (W x S)
12.6o x 7.2o (Wide Angle) & 5o x 3.75o (Telephoto)
Spectral Range
240nm ~ 280nm
Minimum Discharge Sensitivity
1Pc/10m
Minimum RIV Sensitivity
3.6dBμV (RIV) @ 10m
Minimum UV Sensitivity
2 x 10-18 watt/cm2
Focus Range
1.5m ~ ∞
Focus
Auto
VISIBLE - OPTICAL PROPERTIES
Minimum Visible Light Sensitivity
0.1 Lux
Focus Range
1.5m ~ ∞
Focus
Auto
DISPLAY AND OUTPUT
Modes
Combine (UV+VIS), UV only, Visible only
UV / Visible Overlay Accuracy
≤1 mRad
Display
Applicable to the drone control panel
JPG
Video
AVI
Resolution
1280 x 720
Gain
0 ~ 100%
Photons Counting
5 kinds of ROI (Region Of Interest)
Status Information Display
Date, Time, Gains, Counting Number
Alarm Threshold
Provide
PTZ
Voltage
12v ~ 16v
Dynamic Current
600mA
Temperature
-40oC ~ +60oC
Rotate
Pitch Tilt : ±90, Roll Tilt : ±85, Yaw : ±150, Auto Stabilization
Vibration Angle
Pitch/ Roll Tilt : ±0.02, Yaw : ±0.03
DRONE (OPTIONS)
Size (mm)
810 x 670 x 430, 430 x 420 x 430(Fold)
Weight
3.6kg; 6.3kg(With Battery)
Maximum Load
2.7 kg
Maximum Flight Altitude
5000 m
Maximum Wind Speed
15m/s
Maximum Flight Time
55min
Protective Class
IP45
ENVIRONMENTAL
Operation Temp
-20oC ~ +55oC
Operation Humidity
≤90%RH
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
