We need a proper earth grounding to benefit our daily activities and facilities. It helps us not to hurt due to faulty equipment or home appliance installation. Damage from lightning strikes and induced voltages also hazarded to us. Over time, ground systems can degrade or become ineffective. The risks from ground system deterioration include potentially deadly electrical shock situations, equipment damage and heat build-up on a single piece of electrical equipment that is dangerous to our community.
All British Standard Tester ER models (ER-80A / 80M / 81 / 82M / 83A) can perform Earth resistance tests (using the 2, 3 & 4 terminals rod method) to determine the connection from equipment to the grounding system for safety assurance.

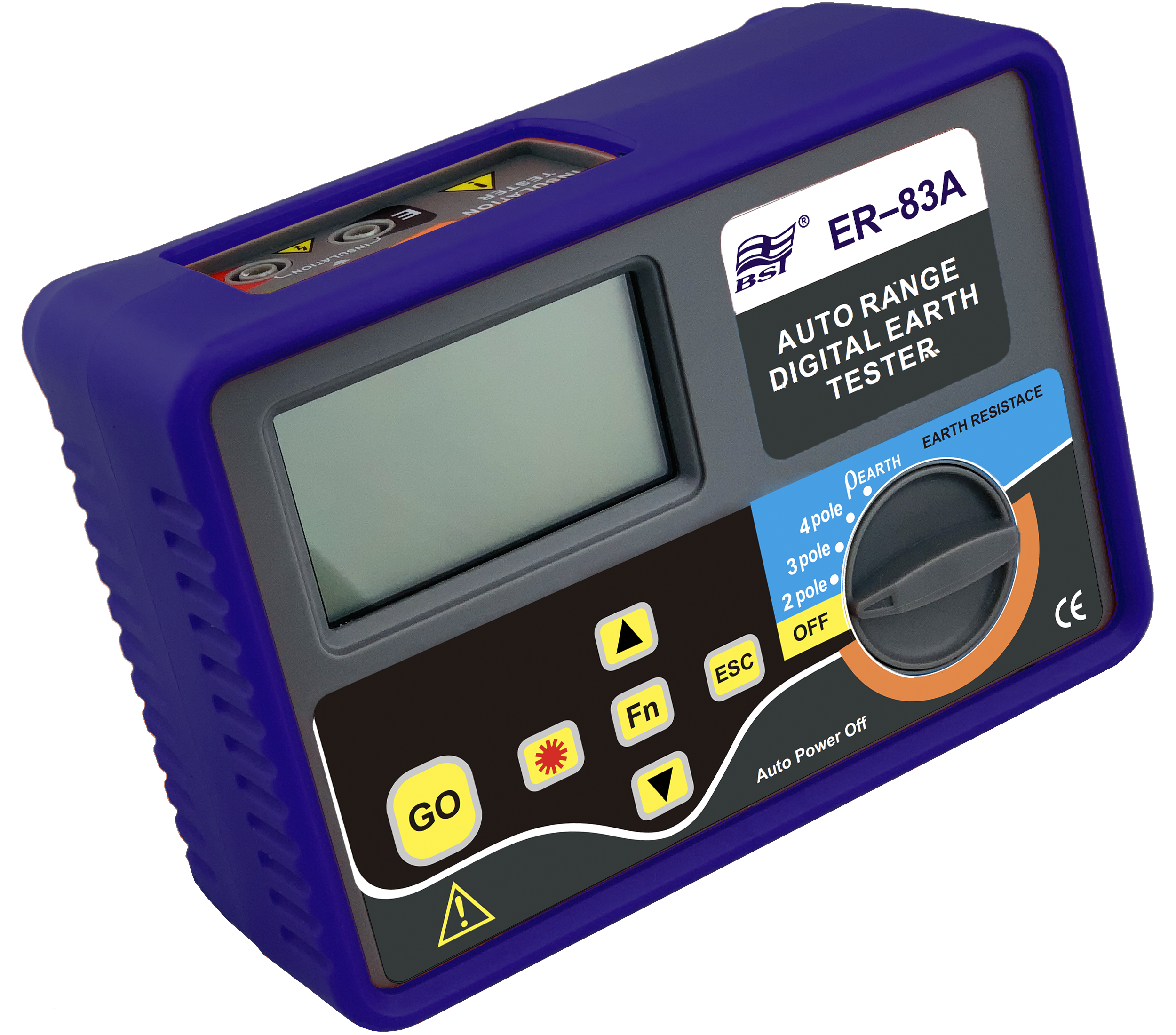

ER-82M and ER-83A are compact design 4-terminal earth resistance testing instruments to provide flexibility for manual (ER-82M) and automatic (ER-83A) operation testing. Both models employ measuring functions for ART (Attached Rod Technique) testing capabilities. The ER-82M / ER-83A can measure earth resistance from 0.030 Ω to 20 kΩ and are also capable of soil resistivity testing (ρ). Both are powered by six LR6 / R6 AA 1.5V Alkaline Battery, which are widely available. The testers are rated IP54 for outdoor use with a safety design to CAT IV 100 V. The basic kit includes the test leads, connectors/adapters, earth rods and a rugged carry pouch – everything you need to start testing in one package.
Functions
- 2-pole / 3-pole / 4-pole earth resistance tester
- Soil resistivity test (ρ)
- Auto-range earth resistance measurement
- Automatic or manual selection of test frequency (94Hz / 105Hz / 111Hz / 128Hz)
- Automatic calculation of soil resistivity measurement results
- Auxiliary ground rod resistance measurement
- Warning for excessive noise and high Auxiliary Earth rod resistance
- Interfering voltage measurement (0~50V)
- Interfering frequency measurement (16~500Hz)
- Compensate test cable resistance Rk function
- LED backlight for easy readout in dim-lit environments
- Automatic shutdown (No operation for 10 minutes)
- Additional robust holster improves protection
- Safety: EN61010-1 CATIV 100V
TECHNICAL SPECIFICATIONS
EARTH RESISTANCE
Range
Test Range
Resolution
Accuracy
0.030 ~ 20 kΩ
0.030 ~ 1.999 Ω
0.001 Ω
±(3% + 5dgt)
0.030 ~ 20 kΩ
2.00 ~ 19.99 Ω
0.01 Ω
±(2% + 3dgt)
0.030 ~ 20 kΩ
20.0 ~ 199.9 Ω
0.1 Ω
±(2% + 3dgt)
0.030 ~ 20 kΩ
200 ~ 999 Ω
1 Ω
±(2% + 3dgt)
0.030 ~ 20 kΩ
1.000 kΩ ~ 1.999 kΩ
0.001 kΩ
±(2% + 3dgt)
0.030 ~ 20 kΩ
2.00 kΩ ~ 19.99 kΩ
0.01 kΩ
±(2% + 3dgt)
GROUND RESISTIVITY “ρ”
Range
Test Range
Resolution
Accuracy
0.06 ~ 1999 kΩ.m
0.06 ~ 99.99 Ω.m
0.01 Ω.m
ρ = 2 x Π x a x Rg
0.06 ~ 1999 kΩ.m
100.0 ~ 999.9 Ω.m
0.1 Ω.m
ρ = 2 x Π x a x Rg
0.06 ~ 1999 kΩ.m
1.000 ~ 9.999 kΩ.m
0.001 kΩ.m
ρ = 2 x Π x a x Rg
0.06 ~ 1999 kΩ.m
10.00 ~ 99.99 kΩ.m
0.01 kΩ.m
ρ = 2 x Π x a x Rg
0.06 ~ 1999 kΩ.m
100.0 ~ 999.9 kΩ.m
0.1 kΩ.m
ρ = 2 x Π x a x Rg
0.06 ~ 1999 kΩ.m
1000 ~ 1999 kΩ.m
1 kΩ.m
ρ = 2 x Π x a x Rg
Project
Range
Resolution
Accuracy
Interference Voltage (Ust)
50.0 V
0.1 V
±(2% + 2dgt)
Interference Voltage Frequency (Fst)
16 Hz ~ 500 Hz
0.1 Hz
±(1% + 0.5 Hz)
BATTERY VALIDITY TEST (5 SEC TEST, 30 SEC INTERVAL)
Function
Test Resistance
Battery Validity Test
Ground Test
10 Ω
More Than 1000 Times
SPECIAL FUNCTION
Display Reading
2000 Counts
Auto Range
√
Automatic Shutdown
10 minutes (No Operation)
Data Hold
Auto
LCD Backlight
√
Lead Resistance Removal (Rk)
√
2 Wire Measurement
√
3 Wire Measurement
√
4 Wire Measurement
√
Ground Resistivity “ρ”
√
SPECIAL FUNCTION
Size (W x H x D)
168 mm x 118 mm x 70 mm
Weight
~760g (With Battery)
Battery
LR6 / R6 AA 1.5v x 6 Alkaline Battery
Accessories
Banana Plug + Alligator Test Lead Set x 1 (Red 20m, Yellow 15m, Green 5m, Black 5m), Earth Rod x 4, Manual x 1
Colour
Grey + Blue
Standard Packaging
Nylon Carry Pouch x 1 & White Box x 1
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
