We need a proper grounding to benefit our daily activities and facilities. It helps us not to hurt due to faulty equipment or home appliance installation. Damage from lightning strikes and induced voltages also hazarded to us. Over time, ground systems can degrade or become ineffective. The risks from ground system deterioration include potentially deadly electrical shock situations, equipment damage and heat build-up on a single piece of electrical equipment that is dangerous to our community.

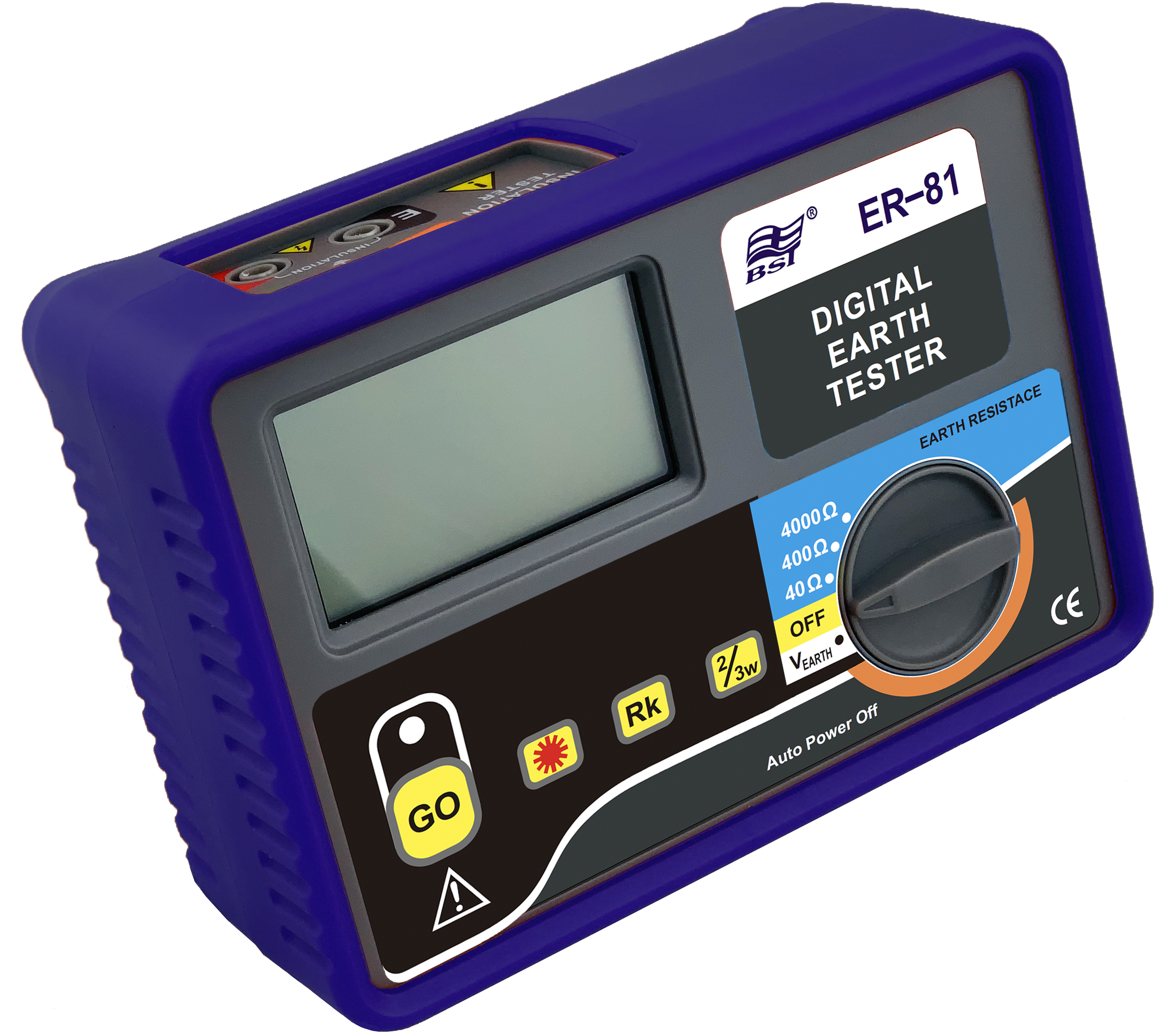

All British Standard Tester ER models (ER-80A / 80M / 81 / 82M / 83A) can perform Earth resistance tests (using the 2, 3 & 4 terminals rod method) to determine the connection from equipment to the grounding system for safety assurance.
FUNCTIONS
- Supports 2 and 3 wire testing (0.01Ω - 4000Ω)
- Interfering voltage measurement (0~100V)
- Compensate test cable resistance Rk function
- LED backlight for easy readout in dim-lit environments
- Automatic shutdown (No operation for 10 minutes)
- FPower Supply: LR6/ R6 AA 1.5V x 6 Alkaline battery
- IP54 for outdoor environments
- Safety: EN61010-1 CATIV 100V to the ground; max 100V between V-E terminal
TECHNICAL SPECIFICATIONS
EARTH RESISTANCE
Range(Ω)
Resolution(Ω)
Accuracy
0.01 ~ 40.00 Ω
0.01 Ω
±(2% + 0.1Ω)
0.1 ~ 400 Ω
0.1 Ω
±(2% + 3dgt)
1 ~ 4000 Ω
1 Ω
±(2% + 3dgt)
Test Frequency
About 820Hz
Test Current
40Ω about 3 mA, 400Ω about 2 mA, 4000Ω about 1 mA
Open Test Voltage
≤48Vrms
INTERFERING VOLTAGE MEASUREMENT
Range
Resolution
Accuracy
Frequency Response
100.0 V
0.1 V
±(2% + 5dgt)
40Hz ~ 500Hz
BATTERY VALIDITY TEST (5 SECOND TEST, 30 SECOND INTERVAL) Battery
Function
Test Resistance
Battery Validity Test
Ground Test
10Ω
More Than 3000 Times
BASIC FEATURES
Display Reading
4000 Counts
Auto Power Off
10 minutes (No Operation)
Data Hold
Auto
LCD Backlight
√
Lead Resistance Removal (Rk)y
√
2 Wire Measurement
√
3 Wire Measurement
√
BASIC PARAMETERS
Size (Main Unit) (W x H x D)
168 mm x 118 mm x 70 mm
Weight (Main Unit)
760g, Including Batteries
Battery
LR6 / R6 1.5V x 6 AA Alkaline Battery
Dimensions
Grey + Blue
Accessories
Test Lead Set x 1 (Red 15m, Yellow 10m & Green 5m), Quick Test Set x 1, Ground Rod x 2
Standard Packaging
White Box x 1, Manual x 1, Nylon carry pouch x 1
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
