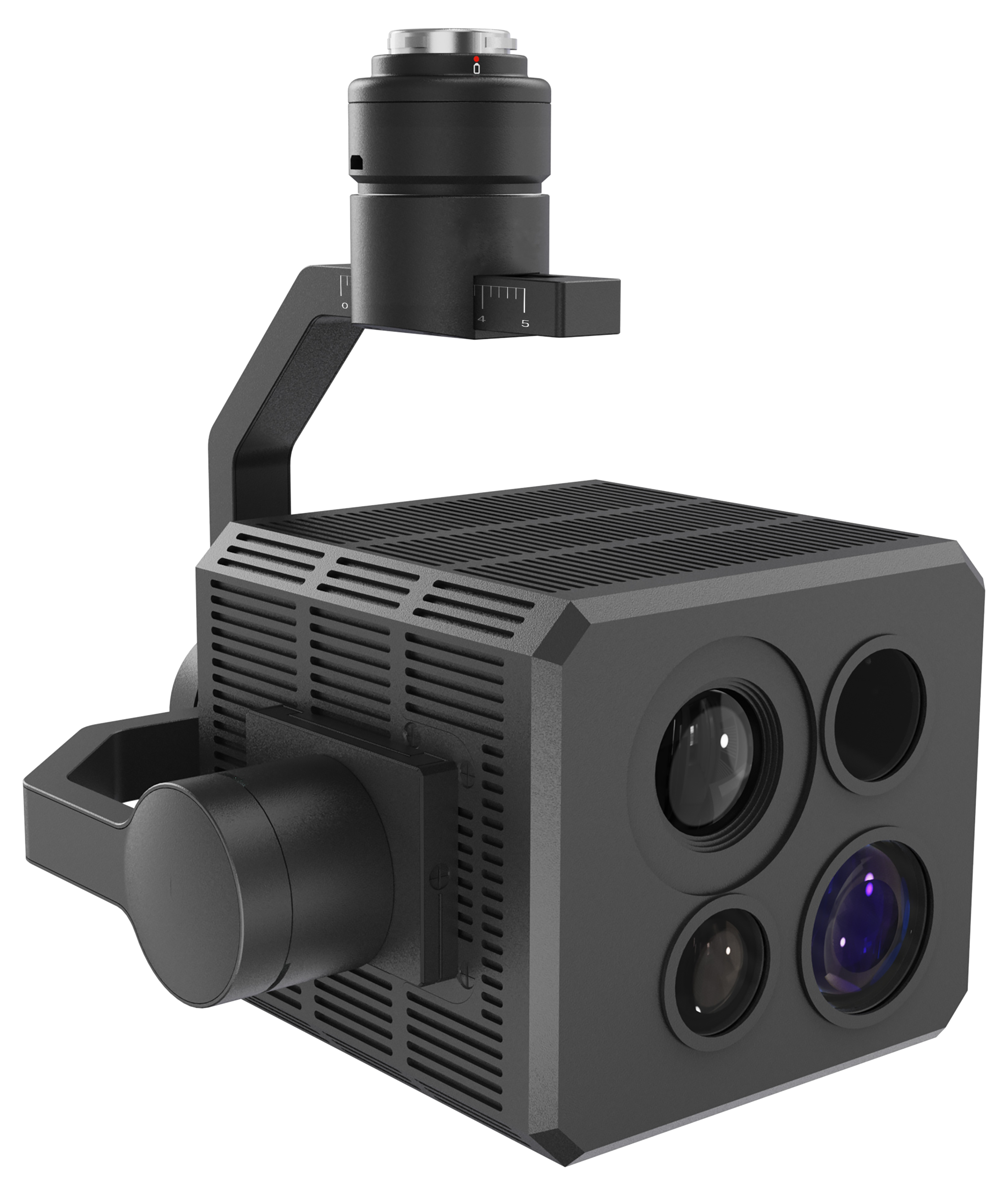

BC-30 DR (DRONE) is a three-in-one imager integrating UV, IR and VIS. It can be used for day and night inspection. Corona discharge and temperature fields that are not visible to the human eyes are formed into various fusion images for precise localization and quantitative diagnostic analysis of defects. BC-30 DR can be used for premaintenance inspection of power equipment such as transmission, distribution and railroad lines. It can also help petrochemical, forest fire-prevention, heavy industry etc. The instrument adopts high sensitivity, high pixel UV, IR, and VIS sensors. Through high precision image registration and image fusion algorithm to get accurate and clear images. Self-developed PTZ adapted to drone communication, highly integrated design, easier to control and fly.
FEATURES
High Sensitivity UV Sensor
High-performance ultraviolet(UV) detector for day and night inspections. No interference from the sunlight.
Fusion Switching
It can fuses UV, IR, VIS image and output HD picture / video, multiple imaging modes can be switched.
Accurate IR Measurement
Use 640×480 pixel IR detector, high accuracy, wide range and high temperature point tracking.
Integrated Design
UV, IR, VIS, laser and PTZ integrated construction displayed in the control App, easy to operate.
Accurate Positioning
High-precision image fusion algorithm to accurately locate the corona, arc and partial discharge.
Photon Counting
UV photon counting to evaluate the intensity of discharge, multi-frame counting is available.
High-Definition VIS
28x optical zoom, 12x digital zoom allows clear identification of defects.
After-sales Service
Two-year warranty, timely response to customers' needs, guaranteed top quality service.
TECHNICAL SPECIFICATIONS
UV CHANNEL PROPERTIES
Wavelength Range
240 nm ~ 280 nm
Discharge Sensitivity
1Pc/10m
RIV Sensitivity
3.6dBμV (RIV) @ 10m
UV Sensitivity
2 x 10-18 watt/cm2
FOV
12.6o x 7.2o (Wide-Angle)
IR CHANNEL PROPERTIES
Pixel
640 x 480
Temp Range
-20oC ~ +400oC
Temp Accuracy
±2oC / ±2% of reading
Focus
Auto / Manual
FOV
24.5o x 18.5o
Temp Measurement
Support point, line, frame measurement
Image Analysis
Support
VIS CHANNEL PROPERTIES
Focus Mode & Distance
Auto, 1.5m~ ∞
Minimum VIS Sensitivity
0.1 Lux
Zoom
28x optical zoom, 12x digital zoom
DISPLAY AND OUTPUT
Display Mode
UV, IR, VIS, Fusion
Overlay Accuracy
≤ 1mrad
Display
Applicable to the drone control panel
Image Format
JPG & RAW
Video Format
AVI
Image Resolution
1280 x 720
Status Information Display
Gain, Couting, Date, Function, Focus Mode, Temperature
Corona Colour
7 kinds of colours available
DRONE (OPTIONS)
Size
810 x 670 x 430 mm(unfold), 430 x 420 x 430 mm(fold)
Weight
3.6kg, 6.3kg(with battery)
Maximum Load
2.7kg
Maximum Flight Altitude
5000m
Maximum Wind Speed
15m/s
Maximum Endurance
55min
IP Rating
IP45
PHYSICAL PARAMETERS
Operating Temp
-20oC ~ +55oC
Operating Humidity
≤ 90%RH
Size(L x W x H)
141mm x 144mm x 127mm
Weight
1.5kg
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
