BC-30 ROB & BC-30 AIBO is an intelligent robotic corona detecting tool with UV, IR and VIS multiple spectrum imaging systems integrated with robot (ROB) and robot dog (AIBO). It can simultaneously detect the invisible corona of the human eye or the faint UV rays radiated by the partial discharge of the surface. The IR rays emitted by the current heating and the high-definition VIS 24 hours a day perform real-time positioning observation and quantitative indication through the image. The intelligent inspection management platform includes a smart robot body, robot self-management system, inspection management system, and remote centralized control management system. Personnel deployment, reliability of results, fault handling, information exchange, operation and maintenance efficiency make all power defects nowhere to hide.

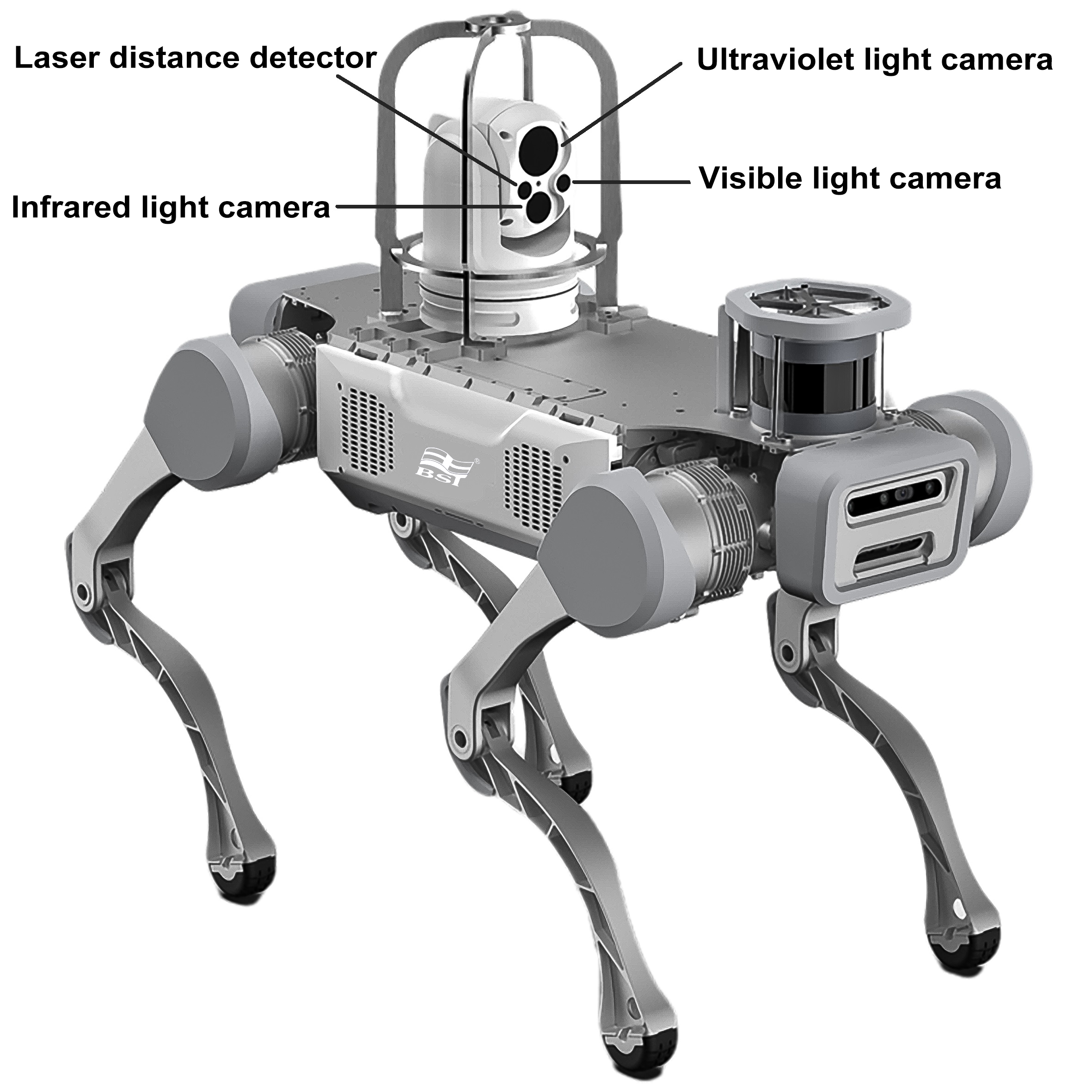

We can load our UV Camera set on the robot wheel (30-ROB) and robot dog (30-ROB-AIBO). The bundle package will give a hassle-free turnkey solution for your robotic project. You may also recruit your choice of robots to match our camera system as a custom option.
Overview
- Real-time photon counting of corona for quantitative analysis
- Out-of-band rejection filter technology, not affected by sunlight
- IP 55 protection, high sensitivity dynamic obstacle avoidance ability
- IR temperature measurement with high precision and a wide range
- One-stop intelligent inspection management platform
- Multi-spectral image auto-focusing and taking photos to facilitate real-time observation
- Powerful 8- drive chassis facilitates multi-directional driving
- Using a 2.4GHZ high-frequency radio communication range
- Multi-spectral synchronization, no delay and tailing, accurate positioning corona
- Endurance time is more than eight hours, meeting the demand of daytime operation
- PC, remote control, manual and automatic integrated control, humanized design
- Stable working temperature from -20oC ~ +60oC
- High-precision LIDAR navigation to accurately locate the driving route
- Customized to specific applications
FEATURES
Super Protection Ability for harsh environment
Designed for substation working environment, with superior protection ability, equipped with obstacle avoidance system, extreme anti- collision protection system and anti-drop system No fear of harsh environment, super anti-plateau wind and sand, anti-electromagnetic interference, anti-high noise capabilities, waterproof and wading capabilities.
Intelligent Inspection Management Platform
Intelligent inspection robot self-management system, smart inspection management system, inspection remote centralized control management system and other systems integrated to solve the problem of personnel deployment, result reliability, fault handling, information delay, operation and maintenance in the traditional inspection efficiency etc.
Multi-sensor, Multi-spectrum, Integrated Intelligent Technology
Advanced audio and video recognition technology, capture abnormalities, accurately and efficiently. Using high resolution IR imaging system with a temp range of -20 to 650oC, accurate IR image temperature measurement and analysis ability. Smart camera with 30 times optical zoom, 1080P high resolution. Use high sensitivity UV detection sensor.
Real-time report, Intelligent prediction based on bid data
The self-developed advanced data model generates visual data analysis reports in real time. Combining previous data, environmental data and other sensors of the entire network, etc. Multi-dimensional Integrated calculations to realize intelligent trend prediction and real-time abnormal warning.
Autonomous Intelligent Inspection without Manual Intervention
Fully automatic round-the-clock inspection, intelligent navigation, route planning, independent charging, without conventional human intervention.
Network-wide Linkage for all Substation Information, Intelligent Diagnosis
Real-time linkage of all the information of entire network, fully supporting compatible sharing of information with different suppliers and manufacturers, uninterrupted communication, overview of the whole, and intelligent decision-making.
TECHNICAL SPECIFICATIONS
CHARACTERISTICS OF UV CHANNEL
Field Of Vision (W x S)
12.6o x 7.2o & 5.0o x 3.75o
Range of Wavelength
240nm ~ 280nm
Minimum Discharge Sensitivity
1Pc/10m
Minimum UV Sensitivity
2 x 10-18 watt/cm2
Pixel
1280 x 720
CHARACTERISTICS OF UV CHANNEL
Image Resolution
640 x 480
Focusing Method
Auto / Manual Focus
Field Of Vision (W x S)
25o x 19o
Range & Accuracy of Temperature Measurement
-20oC ~ 650oC, ±2oC/2%
CHARACTERISTICS OF VIS CHANNEL
Image Resolution
1920 x 1080
Focusing Method & Zoom
Auto / Manual Focus, Optical; x 30, Digital x 20
PARAMETER OF PAN-TILT
Horizontal & Vertical Scanning Range
360o, -10o ~ 90o
Preset Points
>8000 (Customizable)
CONTROL MODE
Control Mode
Auto / Manual Control
Control Terminal
PC, Remote Control
NAVIGATION SYSTEM
Navigation Method / Accuracy
Lidar, ±10mm
COMMUNICATION CAPABILITIES (CUSTOMIZABLE)
Wireless Communication
2.4GHz High-Frequency Radio Station
Maximum Communication Bandwidth & Distance
20Mbps, 1000m
MOVEMENT & WADE BARRIER ABILITY
Vehicle Speed
1m/so
Parking Positioning Accuracy
±10mm
Gradeability
>15o
Obstacle Crossing Ability
50mm
Wading Ability
Ground Ponding<100mm
PROTECTION ABILITY
Body Protection Level
IP55
Extreme Anti-Collision & Anti-Drop Collision System
Support
Dynamic Obstacle Avoidance System
Mechanical, Ultrasonic, Multi-lidar Stereo Avoidance
BATTERY
Maximum Battery Life
>8 Hours
Battery Capacity & Life
36AH, Charge & Discharge Cycle≥1000 Times
SYSTEM WORKING ENVIRONMENT & PHYSICAL PARAMETERS
Working Temperature
-20oC ~ +60oC
Working Voltage
Alternating Current 220V, 50Hz
Physical Dimension
815mm x 580mm x 930mm
Weight
90kg
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
