While a thermometer is hardly the most exciting device, it's essential to our lives. They are commonly used to take temperatures - and in the field of HVAC, temperature control is all-important.


As little as 1°C could represent a considerable change in equipment status and compliance with regulations, such as the proper temperature at which a supermarket must store meat. Precision is essential and matters to our well-being.


Accurate temperature measurements are essential for reading air differences, superheat, and subcooling. HVAC thermometers are most commonly used to measure air, water, refrigerant, and copper lines' temperatures, and these measurements are vital to locating the source of potential hazards or defects.

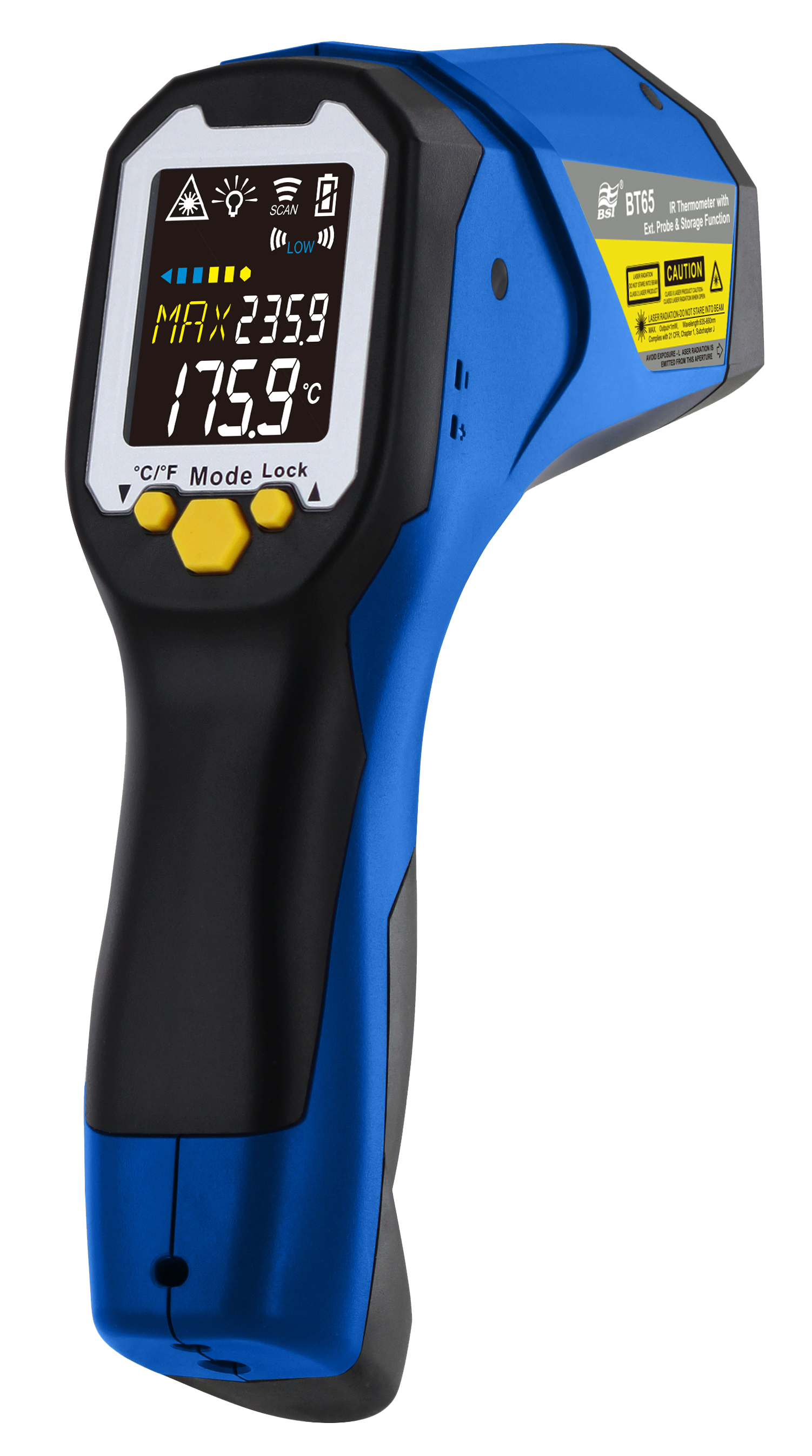

BT-65/66 professional thermometer gun is ideal for troubleshooting, diagnosing, and performing routine spot-checking of car system performance for brakes to radiators, HVAC system, and engine timing.

FEATURES

- Versatility: HVAC, Automotive, Construction, Power plant, industry

- Wide Measurement Range:( -35 to 1600°C / -31 to 2912°F )

- High DS (Distance to Spot) Ratio: 60:1

- Laser Sight Technology for Better Targeting; Dual Laser

- Colour Bar Displays Temperature in Max / Min Mode

- Backlight & Memory Mode

- Built-in K Thermocouple Socket

- Rugged Casing with 2M Drop Proof

- Ergonomic Handle with Rubber Boot

- Tripod Mounted

- AA x 2 Battery

- CE & UKCA complied

OPTIMIZED APPLICATION

AUTOMOTIVE

HVAC

INDUSTRY

TECHNICAL SPECIFICATIONS

Description

IRT + Laser + Thermocouple Socket, with USB Function, with SD Card Storage, with Color Bar Display

Measurement Range

-35 ~ +1600oC (-31 ~ +2912oF)

Measurement Range#

-64 ~ +1400oC (-83.2 ~ 2552oF)

Operating Range

0 ~ 50oC (32 ~ 122oF)

Accuracy, Tamb= 23±3oC

Tobj= 0 ~ 1600oC: ±2% of Reading or 2oC (4oF) whichever is greater, Tobj= -35 ~ 0oC: ±(2.5oC + 0.05/oC)

External Probe Accuracy, Tamb=23±6oC#

±1% of reading or 1oC (1.8oF), whichever is greater

Emissivity Range

0.95 default, adjustable from 0.1 to 1 step .01

Resolution

0.1oC / 0.1oF at -83.2 ~ +999.9 (oC / oF), Otherwise 1oC / 1oF

Spectral Range

8~14μm

Response Time (90%)

1sec

Distance: Spot

60:1 (90% energy covered)

Internal Memory

Detailed 24 Memories with Temperature & Emissivity

Mode

Max / Min, Diff, Avg, Lock, Hi / Low Temp Alarm

Memory Type

Support Micro SD card (Recommend to use attached Micro SD card)

Thermocouple Probe

K Type Thermocouple socket (K probe not included)

Output Interface

USB, SD card

Power Supply

AA x 2pcs

Battery Life

Typical 14 hours, minimum 10 hours continuous use (with laser and backlight) Typical 20 hours, minimum 16 hours continuous use (with backlight only) *Backlight is default set fixed ON/Laser is selectable ON/OFF

Dimensions

203 x 176 x 58.3 mm (8 x 7 x 2.3 inch)

Weight

~400 g (14.1 oz) including batteries

#Actual temperature range depends on the TC probe selected
