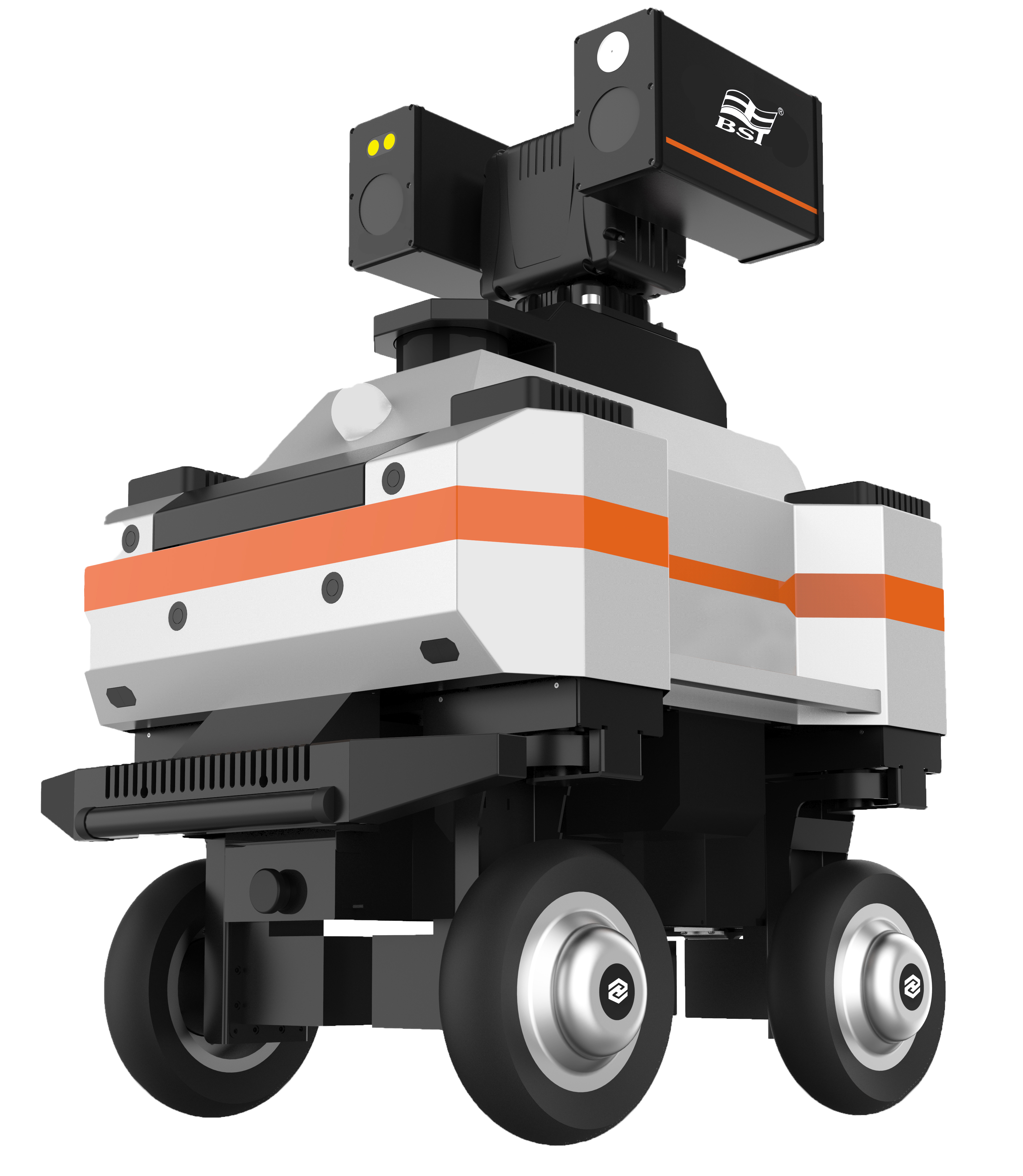

BC-30 ROB & BC-30 AIBO is an intelligent robotic corona detecting tool with UV, IR and VIS multiple spectrum imaging systems integrated with robot (ROB) and robot dog (AIBO). It can simultaneously detect the invisible corona of the human eye or the faint UV rays radiated by the partial discharge of the surface. The IR rays emitted by the current heating and the high-definition VIS 24 hours a day perform real-time positioning observation and quantitative indication through the image. The intelligent inspection management platform includes a smart robot body, robot self-management system, inspection management system, and remote centralized control management system. Personnel deployment, reliability of results, fault handling, information exchange, operation and maintenance efficiency make all power defects nowhere to hide.

We can load our UV Camera set on the robot wheel (30-ROB) and robot dog (30-ROB-AIBO). The bundle package will give a hassle-free turnkey solution for your robotic project. You may also recruit your choice of robots to match our camera system as a custom option.

Overview

- Real-time photon counting of corona for quantitative analysis

- Out-of-band rejection filter technology, not affected by sunlight

- IP 55 protection, high sensitivity dynamic obstacle avoidance ability

- IR temperature measurement with high precision and a wide range

- One-stop intelligent inspection management platform

- Multi-spectral image auto-focusing and taking photos to facilitate real-time observation

- Powerful 8- drive chassis facilitates multi-directional driving

- Using a 2.4GHZ high-frequency radio communication range

- Multi-spectral synchronization, no delay and tailing, accurate positioning corona

- Endurance time is more than eight hours, meeting the demand of daytime operation

- PC, remote control, manual and automatic integrated control, humanized design

- Stable working temperature from -20oC ~ +60oC

- High-precision LIDAR navigation to accurately locate the driving route

- Customized to specific applications

FEATURES

Super Protection Ability for harsh environment

Designed for substation working environment, with superior protection ability, equipped with obstacle avoidance system, extreme anti- collision protection system and anti-drop system No fear of harsh environment, super anti-plateau wind and sand, anti-electromagnetic interference, anti-high noise capabilities, waterproof and wading capabilities.

Intelligent Inspection Management Platform

Intelligent inspection robot self-management system, smart inspection management system, inspection remote centralized control management system and other systems integrated to solve the problem of personnel deployment, result reliability, fault handling, information delay, operation and maintenance in the traditional inspection efficiency etc.

Multi-sensor, Multi-spectrum, Integrated Intelligent Technology

Advanced audio and video recognition technology, capture abnormalities, accurately and efficiently. Using high resolution IR imaging system with a temp range of -20 to 650oC, accurate IR image temperature measurement and analysis ability. Smart camera with 30 times optical zoom, 1080P high resolution. Use high sensitivity UV detection sensor.

Real-time report, Intelligent prediction based on bid data

The self-developed advanced data model generates visual data analysis reports in real time. Combining previous data, environmental data and other sensors of the entire network, etc. Multi-dimensional Integrated calculations to realize intelligent trend prediction and real-time abnormal warning.

Autonomous Intelligent Inspection without Manual Intervention

Fully automatic round-the-clock inspection, intelligent navigation, route planning, independent charging, without conventional human intervention.

Network-wide Linkage for all Substation Information, Intelligent Diagnosis

Real-time linkage of all the information of entire network, fully supporting compatible sharing of information with different suppliers and manufacturers, uninterrupted communication, overview of the whole, and intelligent decision-making.

TECHNICAL SPECIFICATIONS

CHARACTERISTICS OF UV CHANNEL

Field Of Vision (W x S)

12.6o x 7.2o & 5.0o x 3.75o

Range of Wavelength

240nm ~ 280nm

Minimum Discharge Sensitivity

1Pc/10m

Minimum UV Sensitivity

2 x 10-18 watt/cm2

Pixel

1280 x 720

CHARACTERISTICS OF UV CHANNEL

Image Resolution

640 x 480

Focusing Method

Auto / Manual Focus

Field Of Vision (W x S)

25o x 19o

Range & Accuracy of Temperature Measurement

-20oC ~ 650oC, ±2oC/2%

CHARACTERISTICS OF VIS CHANNEL

Image Resolution

1920 x 1080

Focusing Method & Zoom

Auto / Manual Focus, Optical; x 30, Digital x 20

PARAMETER OF PAN-TILT

Horizontal & Vertical Scanning Range

360o, -10o ~ 90o

Preset Points

>8000 (Customizable)

CONTROL MODE

Control Mode

Auto / Manual Control

Control Terminal

PC, Remote Control

NAVIGATION SYSTEM

Navigation Method / Accuracy

Lidar, ±10mm

COMMUNICATION CAPABILITIES (CUSTOMIZABLE)

Wireless Communication

2.4GHz High-Frequency Radio Station

Maximum Communication Bandwidth & Distance

20Mbps, 1000m

MOVEMENT & WADE BARRIER ABILITY

Vehicle Speed

1m/so

Parking Positioning Accuracy

±10mm

Gradeability

>15o

Obstacle Crossing Ability

50mm

Wading Ability

Ground Ponding<100mm

PROTECTION ABILITY

Body Protection Level

IP55

Extreme Anti-Collision & Anti-Drop Collision System

Support

Dynamic Obstacle Avoidance System

Mechanical, Ultrasonic, Multi-lidar Stereo Avoidance

BATTERY

Maximum Battery Life

>8 Hours

Battery Capacity & Life

36AH, Charge & Discharge Cycle≥1000 Times

SYSTEM WORKING ENVIRONMENT & PHYSICAL PARAMETERS

Working Temperature

-20oC ~ +60oC

Working Voltage

Alternating Current 220V, 50Hz

Physical Dimension

815mm x 580mm x 930mm

Weight

90kg
