BC-20 OS (Onsite) is a dual-spectrum integrated imaging system of UV and visible light, which can detect weak corona and partial discharge UV radiation. It can conduct real-time monitoring, quantitative indication, and intelligent analysis of HV electric facilities. Through the front-end, on-site inspection units with a control centre, a smart online power facilities analysis system to effectively improve the operation safety, automation & intelligence level of the substation. It is an innovative technical means for the discharge monitoring of power equipment to reduce operational breakdown.

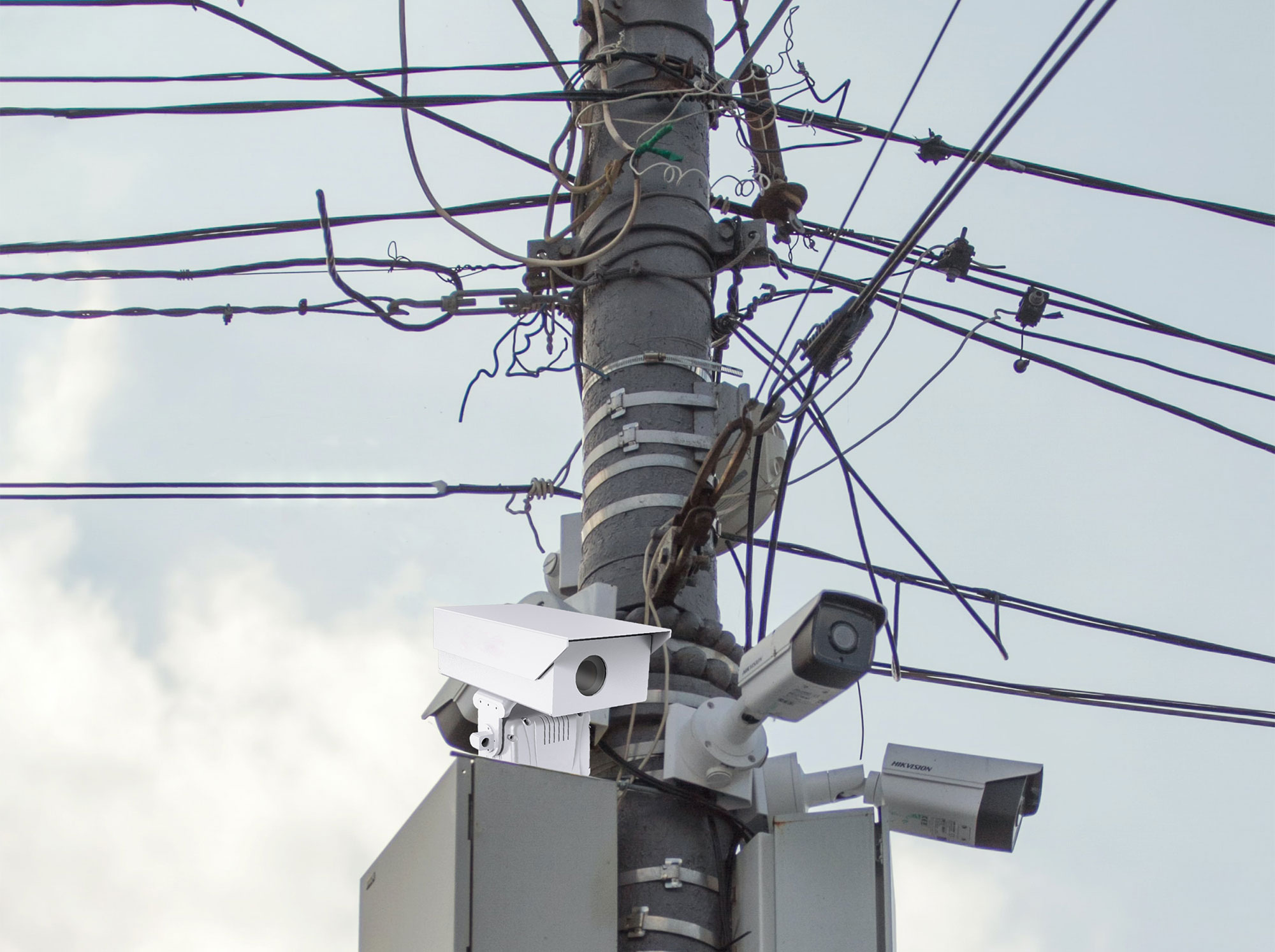

BC-20 OS is a case-mounted inspection solution for HV power lines. Thanks to the unique capabilities of the BST UV Corona technology. The UV-HD camera base, combined with the high-quality UV-HD sensor camera, is mounted on a durable, stabilized, full-featured, high-speed pan & tilt shield robust case.
FEATURES
Advantages & Characteristics
High sensitivity UV detector
Daytime usable, unaffected by sunlight
Accurate image fusion algorithm
Onsite design of communication and control
Accurate positioning
Central control, remote signal transmission
High resolution visible camera
Powerful background analysis and diagnosis
360o rotating high-precision pan-tilt
Integrated design for monitoring
Industrialized design, durable, stable
Early warning
Multi-screen for real-time monitoring
Lightning protection, interference prevention
Set the preposition of patrol inspection
Grounding measures
Unattended humanized control panel
Accept customization
Multi-parameter control and setting Accurate
No attenuation detector
UV photon counting
Digital image filtering and noise reduction

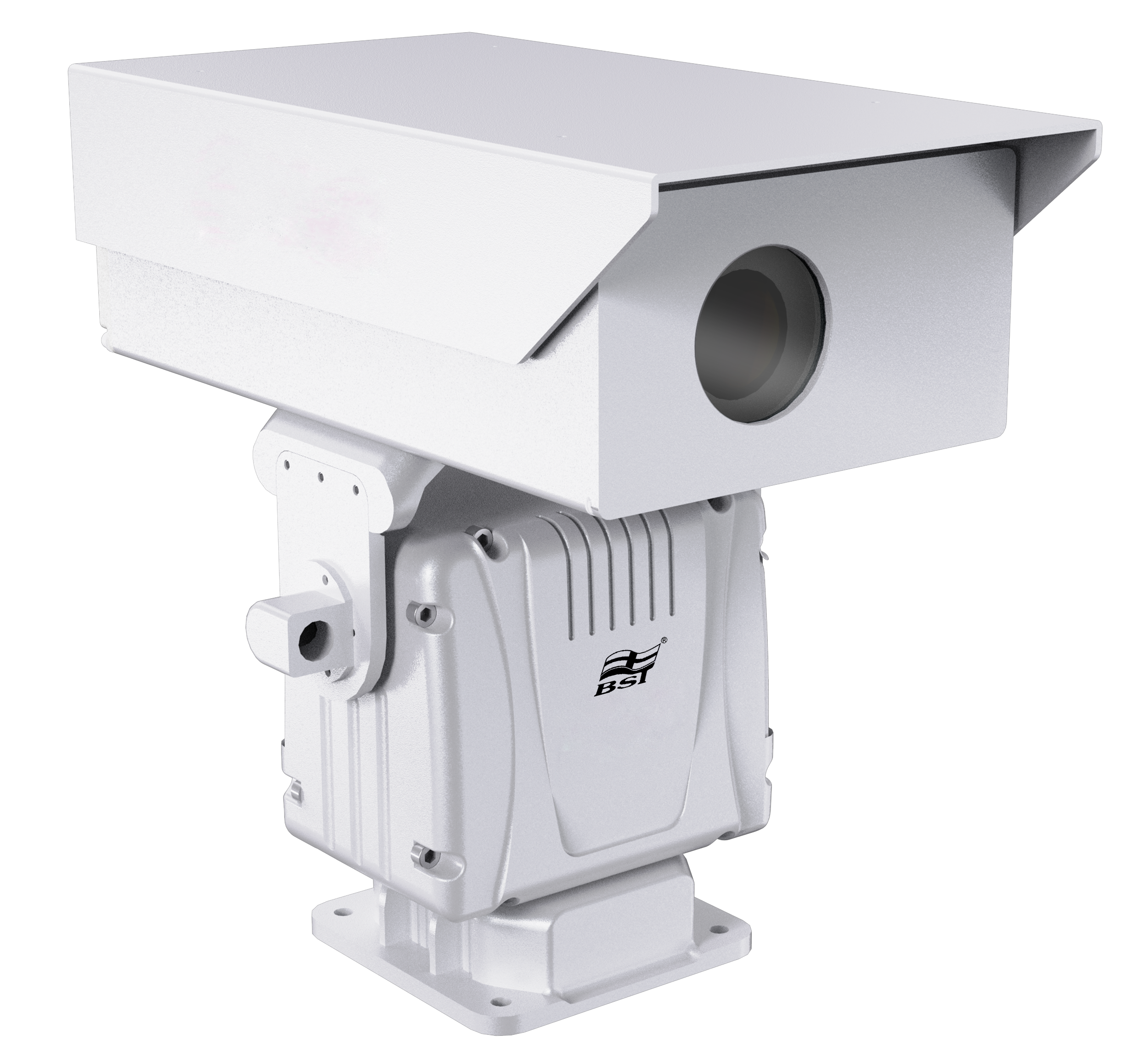

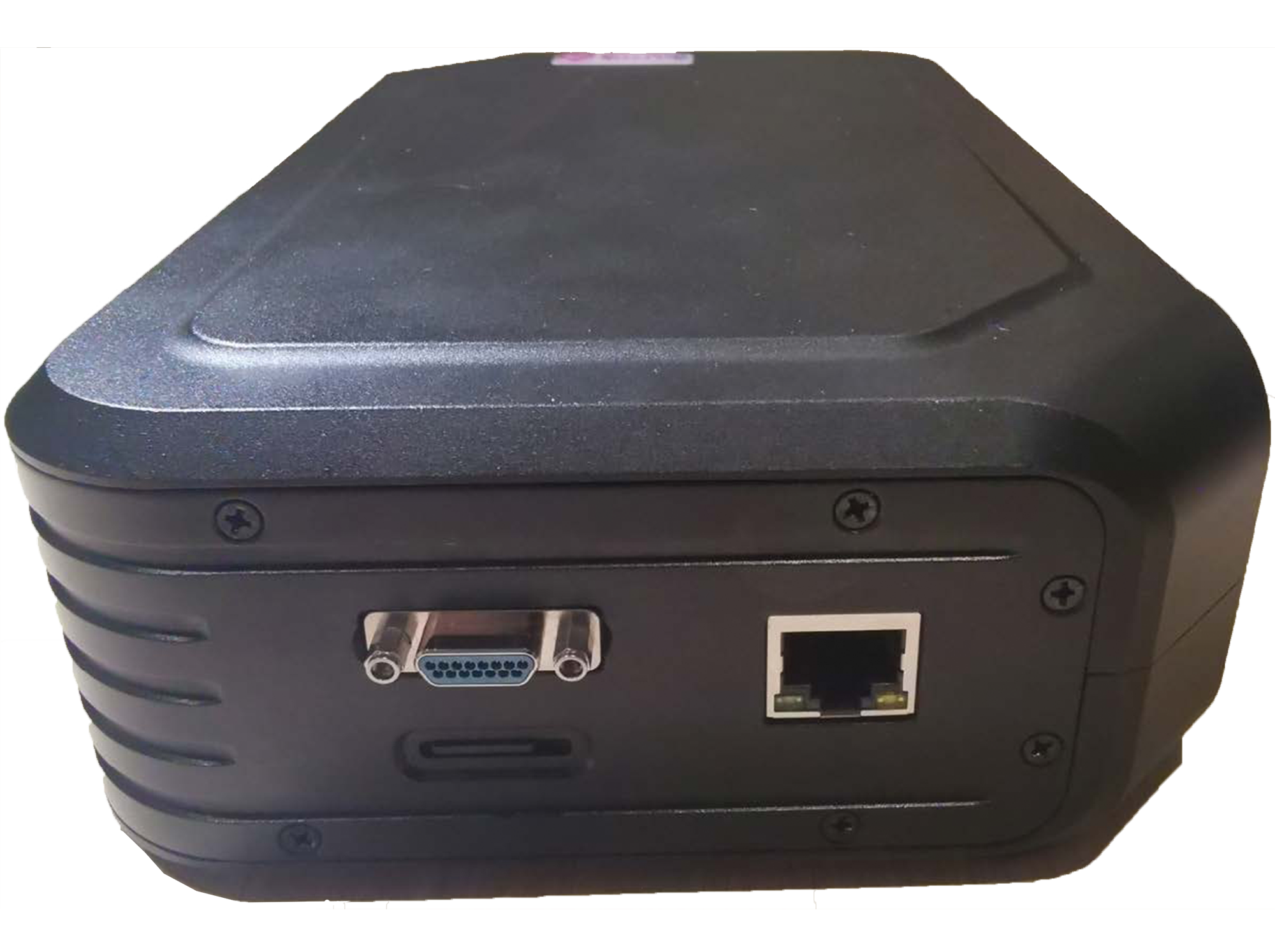

Corona Camera Basic Unit(Mounted into the rugged housing)
Protective Shield(Robust against harsh Environments)
TECHNICAL SPECIFICATIONS
FEATURES OF UV CAMERA
Field Of Vision (W x S)
Switchable, 12.6o x 7.2o & 5o x 3.75o
Spectral Range
240nm ~ 280nm
Minimum Discharge Sensitivity
1Pc/10m
Minimum RIV Sensitivity
3.6dBμV (RIV) @ 10m
Minimum UV Sensitivity
2.0 x 10-18 watt/cm2
Pixel
1280 x 720
Focus Range
1.5m ~ ∞
Focus
Auto
VARIABLE SPEED PAN-TILT FEATURES
Horizontal Range of Motion
0o ~ 360o continuous rotation
Horizontal Speed
0.01o ~ 60o/S
Vertical Range of Motion
-75o ~ +40o
Vertical Speed
0.01o ~ 30o/S
Preset
Support 256 Presettings
OSD
Chinese and English Menu, Real-Time Display
Relay Outpu
4 Ways
Angle Backhaul & Control
Real-Time Backhaul and Control
Lens Control
Available, Configure Lens Preset Interface
FEATURES OF VIS CAMERA
Imaging Device
1/4 inch SuperHAD CCD
Parameter of Lens
Optical Zoom
Minimum Illumination
Chromatic colour 2Lux, 0.004Lux, Black & White 0.2Lux
Horizontal Resolution
Chromatic colour 600TVL, Black & White 700TVL
Electronic Shutter
1/100-1/10000s
Signal-noise Ratio
52dB
Dynamic Detection
Available
Resolution
1920(H) x 1080(V)
Optical Zoom
x18
RDigital Zoom
x10
Control Interface
Ethernet
Due to our policy of continual product development, we reserve the right to amend the specifications of all mentioned products without notice.
